Dual Armored Construction for ProtectionBuilt with a stainless steel spiral armor tube and inner fiberglass yarns this outdoor fiber cable provides double-layer mechanical protection against crushing rodent chewing sharp bending and pulling stress. With an outer diameter of 5.0mm it offers significantly more resistance to physical damage than standard 3.0mm fiber cables making it ideal for direct burial industrial campuses outdoor conduits and environments with heavy foot or vehicle traffic. Engineered for long-term durability in harsh conditions.

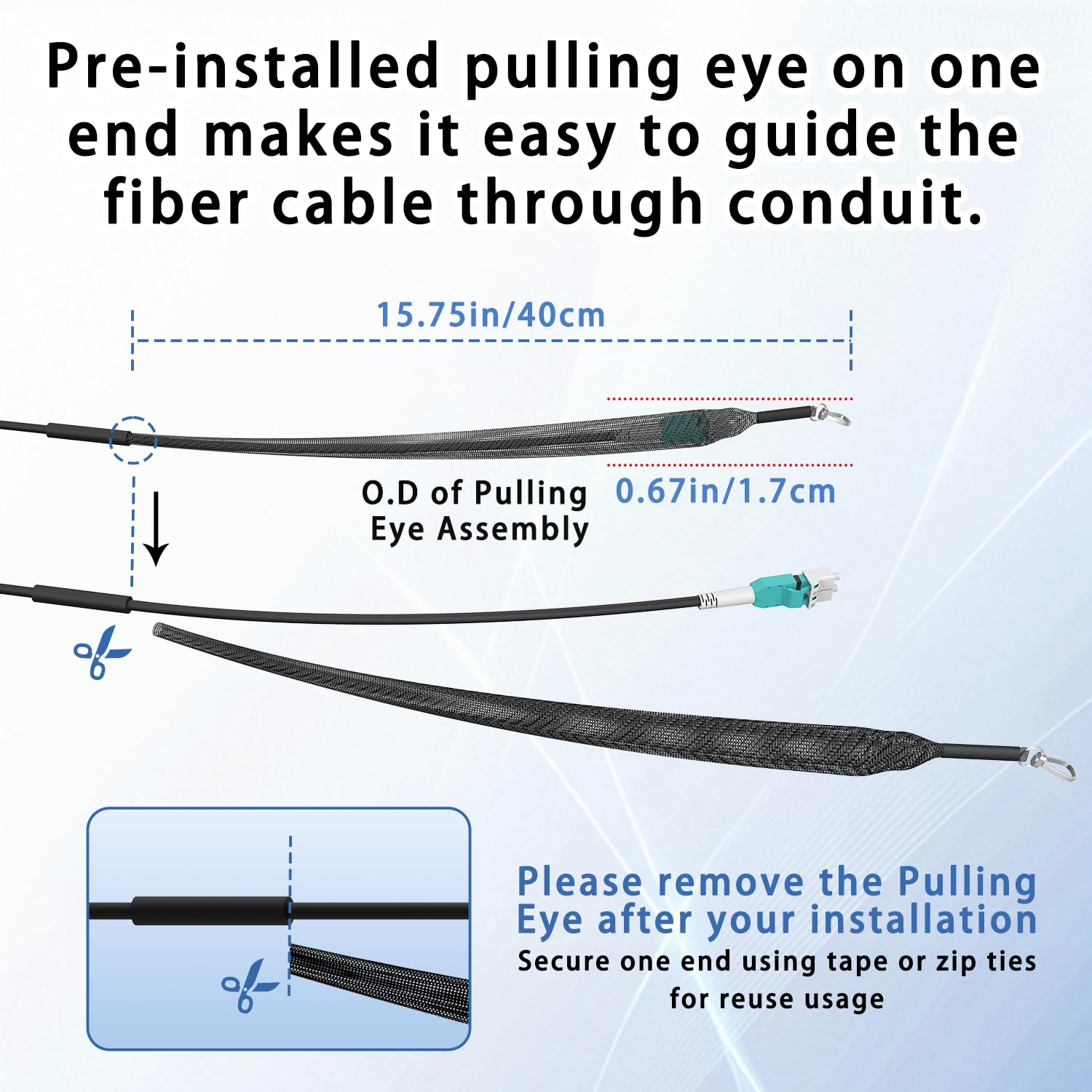

Pre-Installed Pulling Eye for Easy DeploymentThe cable comes pre-terminated with a swivel pulling eye kit on one end allowing for efficient and safe pulling through conduits ducts bridge trays risers telecom manholes and underground raceways. It eliminates the risk of fiber damage during long-distance installations. The pulling eye cover is removable and reusable making it ideal for multi-phase construction structured cabling building backbone links outdoor trench routing industrial campuses and FTTH deployments across large properties.
OM3/OM4 High-Speed Transmission up to 100GbpsThis armored fiber optic cable uses 50/125m multimode fiber to support high-speed Ethernet connectivity. At 850nm wavelength OM3 supports 10Gbps up to 300m 40Gbps up to 100m and 100Gbps up to 70m; OM4 extends these distances to 400m 150m and 100m respectively. Ideal for data center backbones enterprise LANs telecom rooms FTTH deployments server farms campus networks SAN/NAS storage interconnects broadcast studios control systems surveillance backhauls and other high-density high-bandwidth fiber optic infrastructure.
Space-Saving Uniboot & Broad Device CompatibilityLC uniboot connectors reduce cable clutter and enable quick polarity reversalideal for dense patching environments. This cable supports 1G/10G/25G/40G/100G SFP/SFP+/XFP/QSFP+ modules and integrates smoothly with Ethernet switches routers firewalls ONU/OLT terminals media converters patch panels NICs NVR systems fiber mux/demux units and industrial control equipment. Compatible with Cisco Ubiquiti Mikrotik Juniper HPE Arista TP-Link Netgear Intel Fortinet Zyxel Mellanox Supermicro Huawei ZTE Brocade D-Link and others.

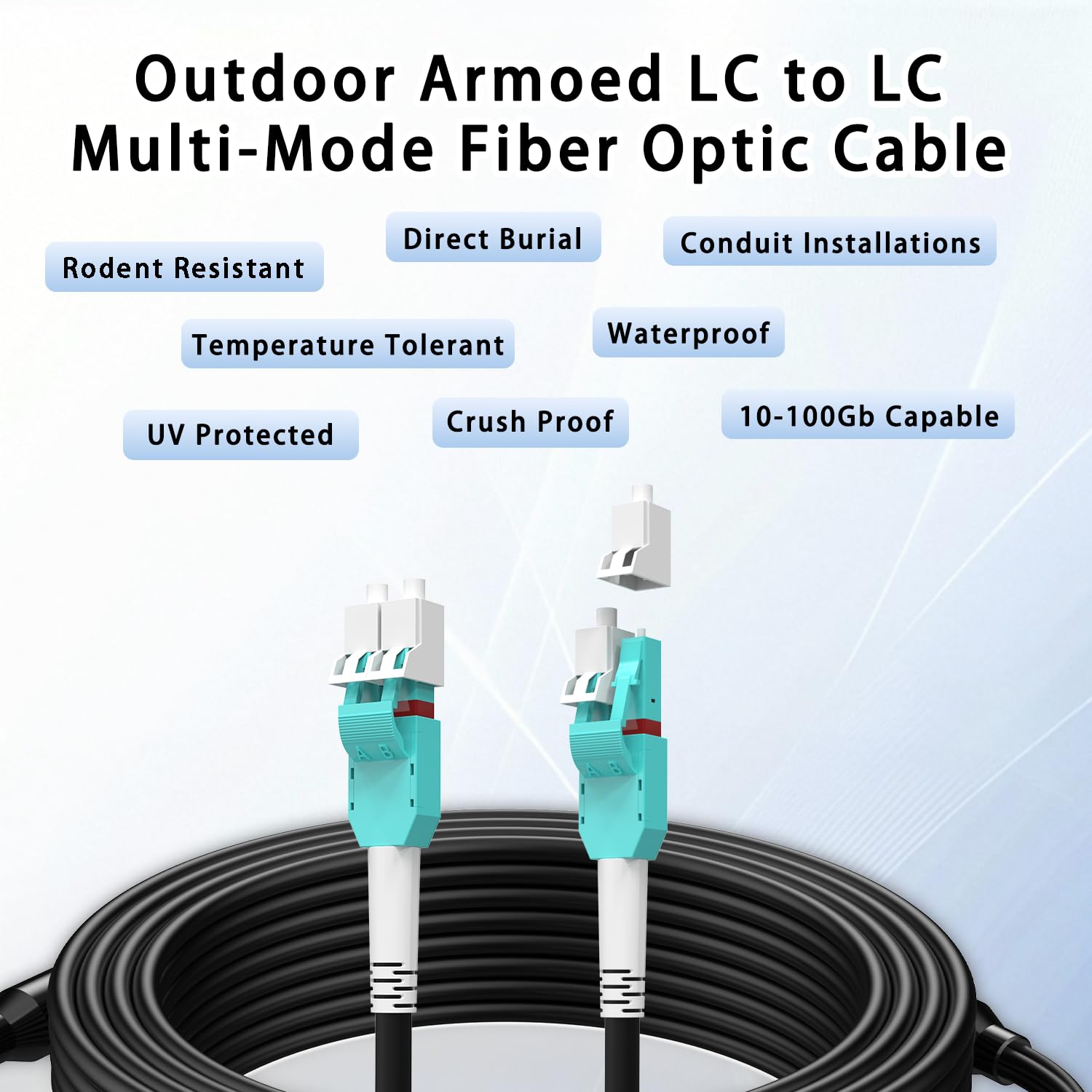

The 100m (328ft) LC to LC Outdoor Armored Fiber Optic Patch Cable is purpose-built for high-bandwidth transmission and complex routing in harsh environments. Featuring bend-insensitive OM3/OM4 multimode fiber and dual-layer mechanical protection it delivers dependable performance in mission-critical deployments such as data centers telecom rooms and FTTH networks.
Enhanced Engineering Features:
- 5mm vs 3mm Durability: The 5.0mm OD cable offers superior crush resistance and tensile strength compared to 3.0mm standard cables ensuring longer lifespan and stability in industrial or buried installations.
- Waterproof & Crush-Resistant: Designed to withstand up to 3000N of crush force and long-term tension of 200N the cable resists water ingress and external pressureideal for underground and conduit environments.

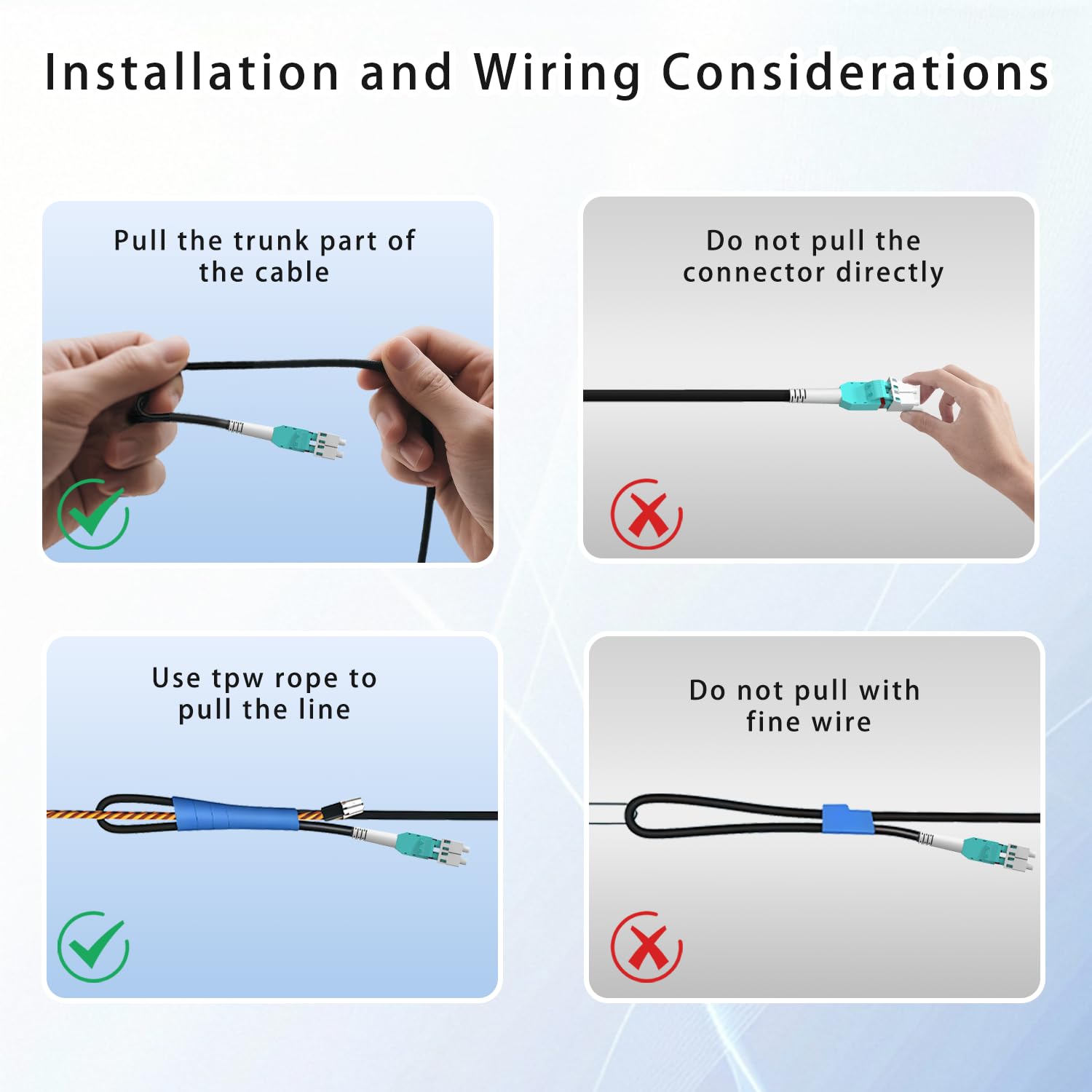

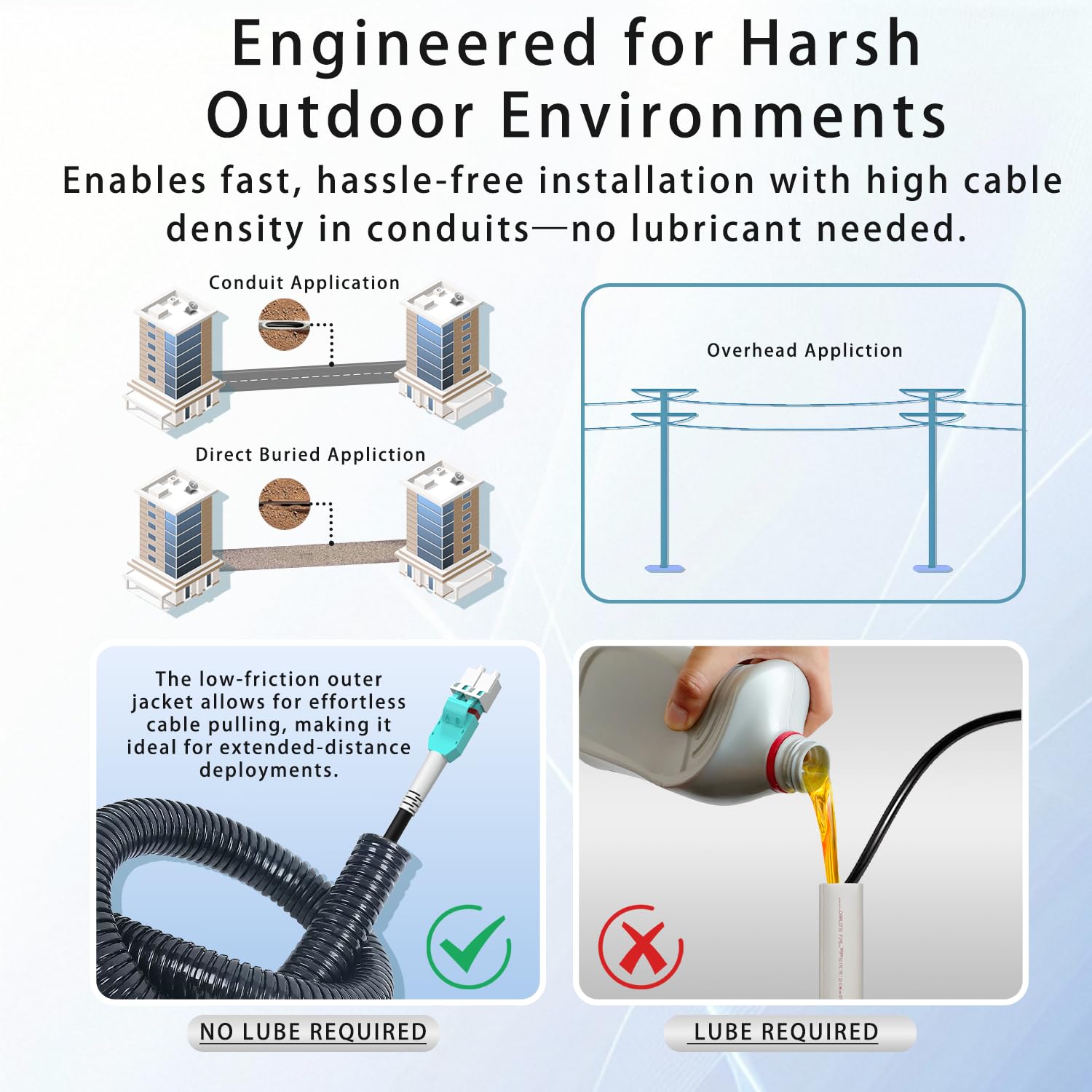

- Optimized for Conduit Pulling: With a pre-installed pulling eye the cable supports secure damage-free routing through long conduits floors risers and bridge traysreducing installation time and cost.
5 Key Innovations:
- Streamlined Deployment: Unlike conventional jumpers s pre-installed pulling eye cuts labor by up to 40% in complex routes like vertical risers and outdoor conduits.
- TPU Jacket Longevity: Industrial TPU outer jacket resists UV salt fog and thermal agingretains flexibility even after 20 years in sun snow or coastal humidity.
- Double Armor Impact Protection: Built-in stainless steel spiral tube + fiberglass yarns guard against rodent bites and foot traffic pressure.
- Eco-Friendly Reusability: Pulling eye is removable and reusablesupports sustainable low-waste deployments.
- Uniboot Flexibility: LC Uniboot duplex connectors allow tool-free polarity reversal ideal for rack management and modular upgrades.
OM3/OM4 Transmission Distances:
- OM3: 10Gbps @ 300m 40Gbps @ 100m
- OM4: 10Gbps @ 400m 40Gbps @ 150m 100Gbps @ 100m

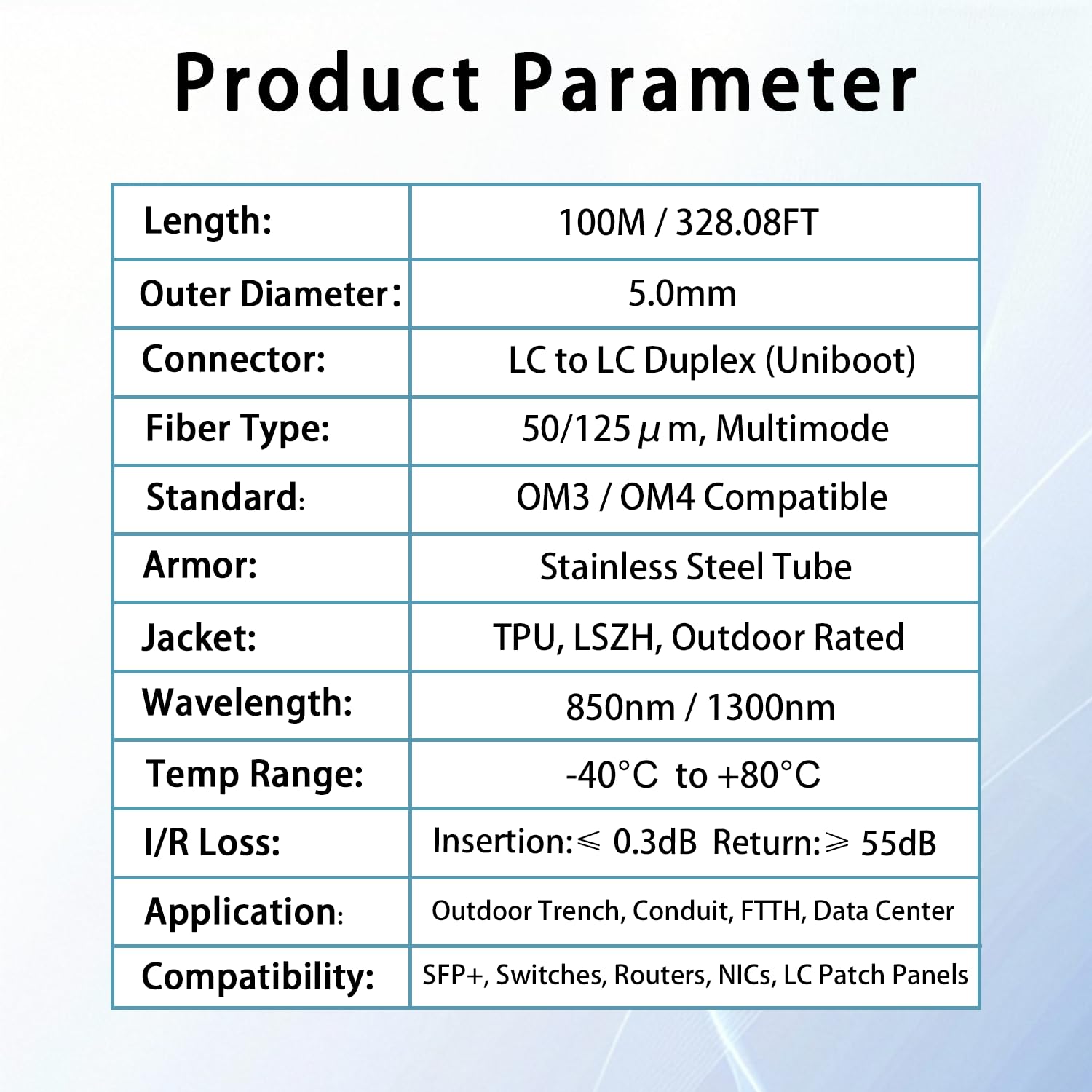

Technical Specifications:
- Connector Type: LC to LC (Uniboot UPC polish)
- Fiber Type: OM3/OM4 Multimode 50/125m bend-insensitive
- Insertion Loss: 0.3dB (100m) 0.6dB (100200m) 0.9dB (200300m)
- Return Loss: 55dB

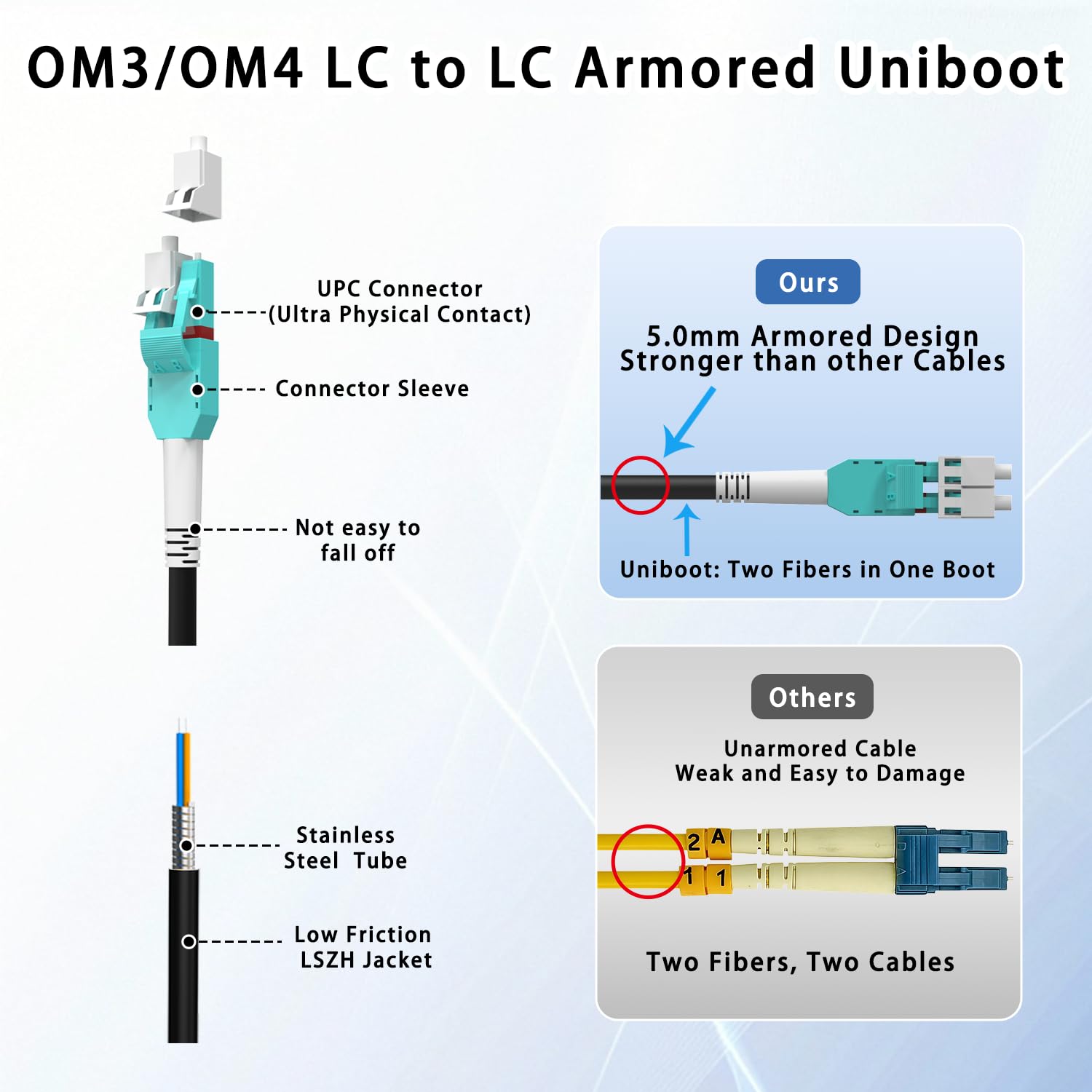

- Outer Jacket: Black industrial-grade TPU OD 5.0mm
- Armor: Stainless steel spiral tube + reinforced fiberglass yarns
- Tensile Strength: 200N (long term) / 600N (short term)
- Crush Resistance: 2000N/3000N (long/short term)
- Operating Temperature: -40C ~ +80C
- Lengths Available: 5m (16ft) to 300m (984ft)
Application Scenarios:
- Data center backbone cabling & high-density patching
- SAN/NAS fiber interconnects and storage networks
- Telecom room fiber runs ONU/OLT deployments
- FTTH/FTTB access and fiber cabinet extensions
- 4K/8K IP camera surveillance backhaul
- Smart building and campus fiber links
- Tunnel bridge and railway signaling systems
- Industrial control networks PLC fiber connectivity
- Offshore wind farms substation monitoring
- Harsh outdoor sites: coastal desert mountaintop
Device Compatibility:
Compatible with Cisco Ubiquiti UniFi Mikrotik HPE Juniper Netgear TP-Link Intel Fortinet Arista Supermicro Huawei ZTE and more.
Supports SFP SFP+ QSFP+ QSFP28 and XFP transceivers; routers switches ONU/OLT ports patch panels NICs media converters and DWDM/CWDM equipment.
armored fiber cables are engineered for high-bandwidth long-distance and harsh-environment deploymentsensuring performance reliability and sustainable installation at scale.
