  • 500ft/150m OD-5mm Industrial TPU OM3 Fiber LC to LC Outdoor Armored Fiber Patch Cable Duplex Multimode Fiber Optic Cable 10Gb 50/125 Uniboot LC-LC with Pulling Eye Kit Installed on one end

500ft/150m OD-5mm Industrial TPU OM3 Fiber LC to LC Outdoor Armored Fiber Patch Cable Duplex Multimode Fiber Optic Cable 10Gb 50/125 Uniboot LC-LC with Pulling Eye Kit Installed on one end

103.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

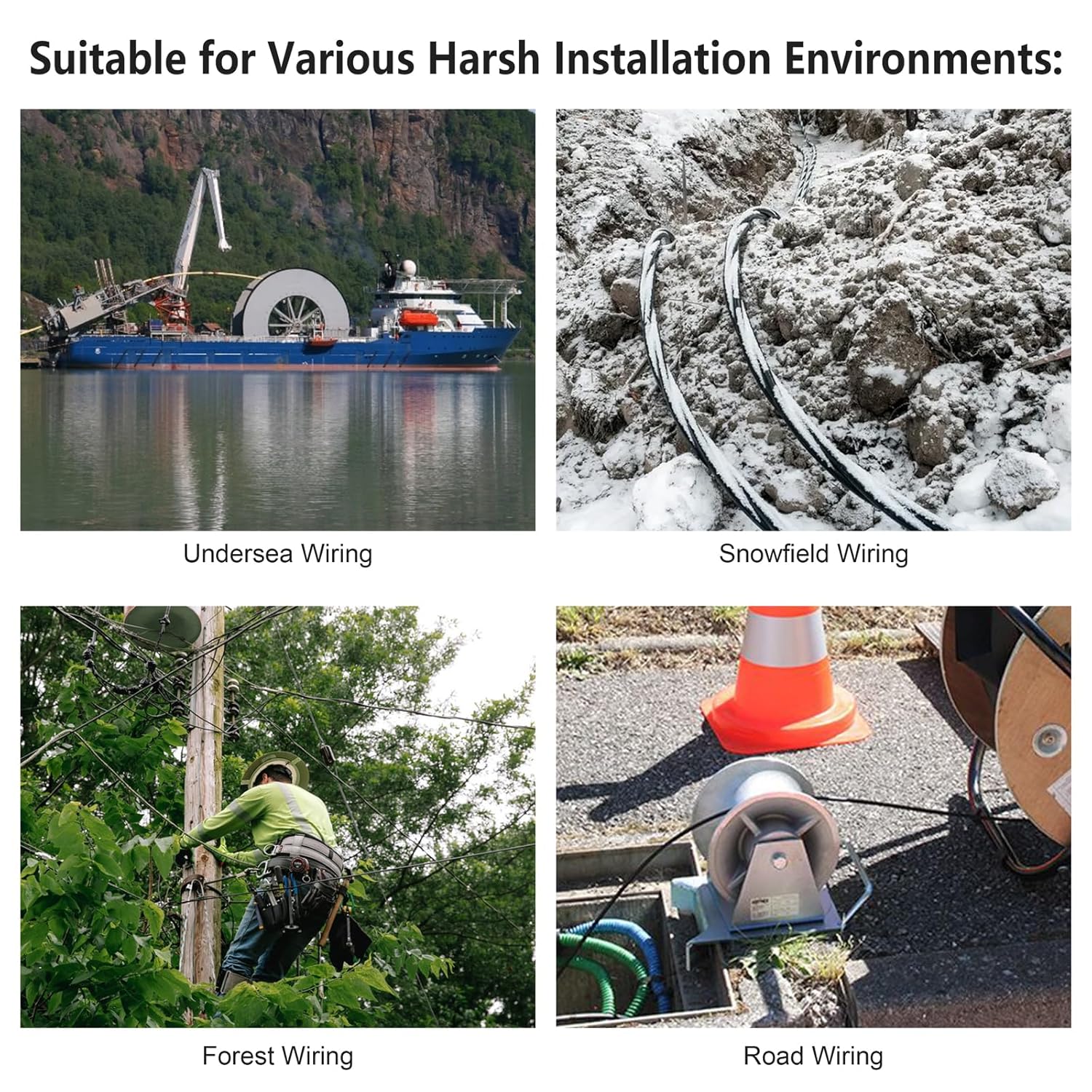

          Industrial TPU Jacket features strong tensile strength high abrasion resistance water proof high and low-temperature resistance uv-resistant bending resistant. Suitable for Various Harsh Installation Environments such as roads & snowfields & industrial fields & construction sites.

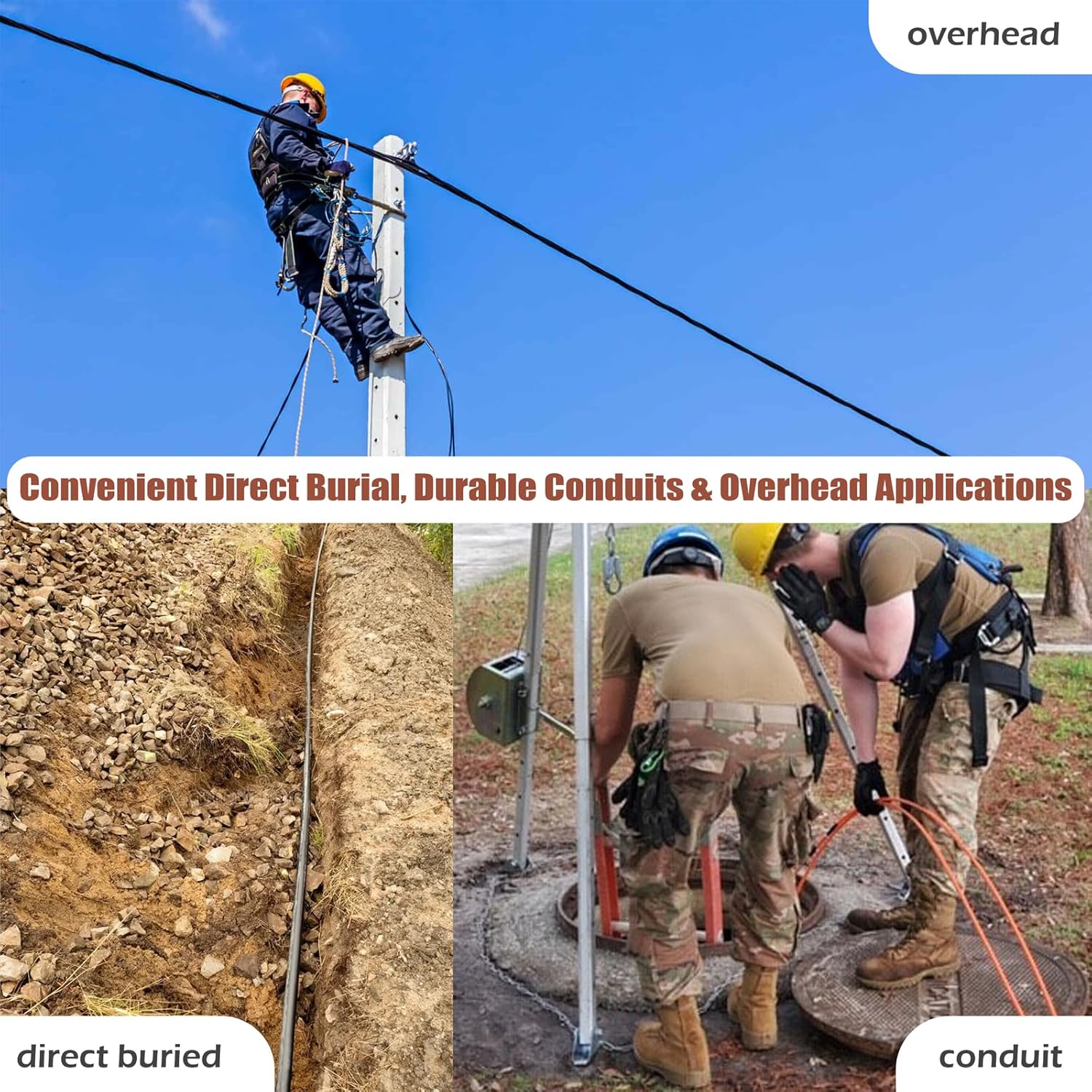

          Can be installed overhead buried directly in the ground or routed through conduits.
          Combination of Metal Steel Armor and Glass Fiber Yarns Provides Dual Physical Protection Against Rodents

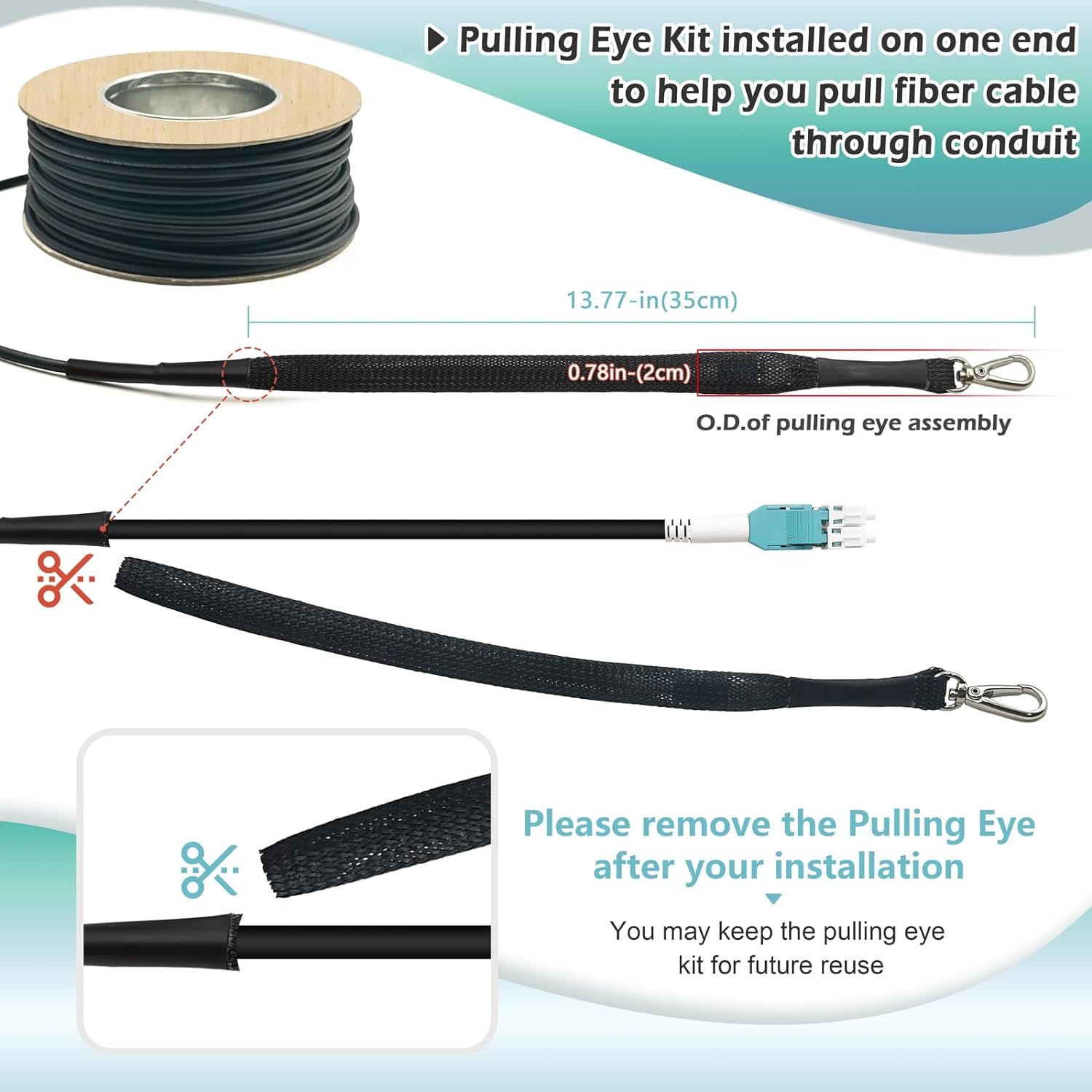

          Pulling eye Pre-Terminated OM3 Fiber cables: with swivel pulling eye kit installed on one end to eliminate cable damage during installation. You can remove the pulling eye kit after installation and keep it for reuse. The pulling eye kit is a must for any riser or plenum fiber installation
          5.0mm Outer Diameter Outdoor Fiber Optic Cable a larger diameter compared to 3.0mm cables: Thicker 5.0mm cables suitable for environments where the cable might be subjected to more wear and tear such as outdoor installations industrial settings or areas with a higher risk of physical damage.

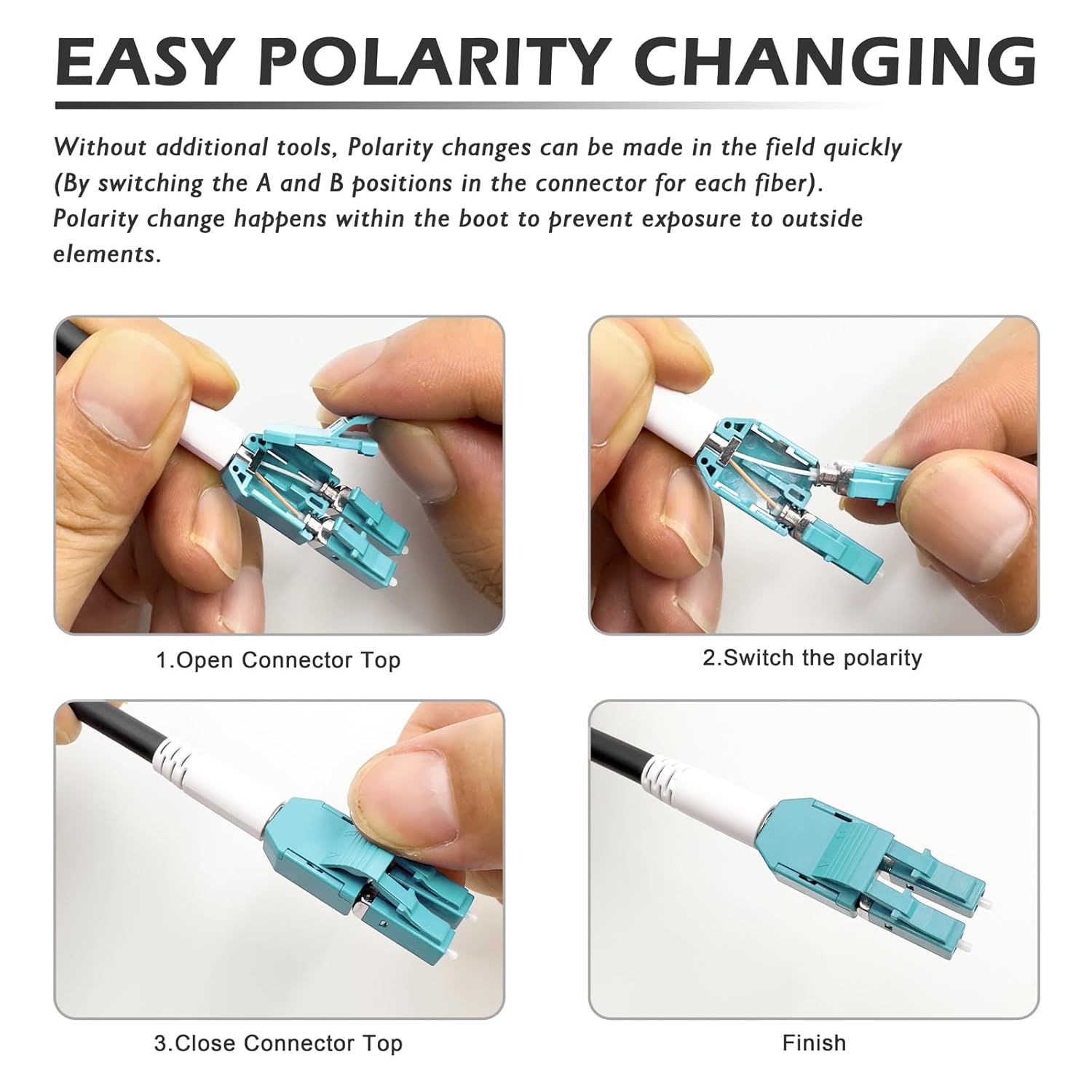

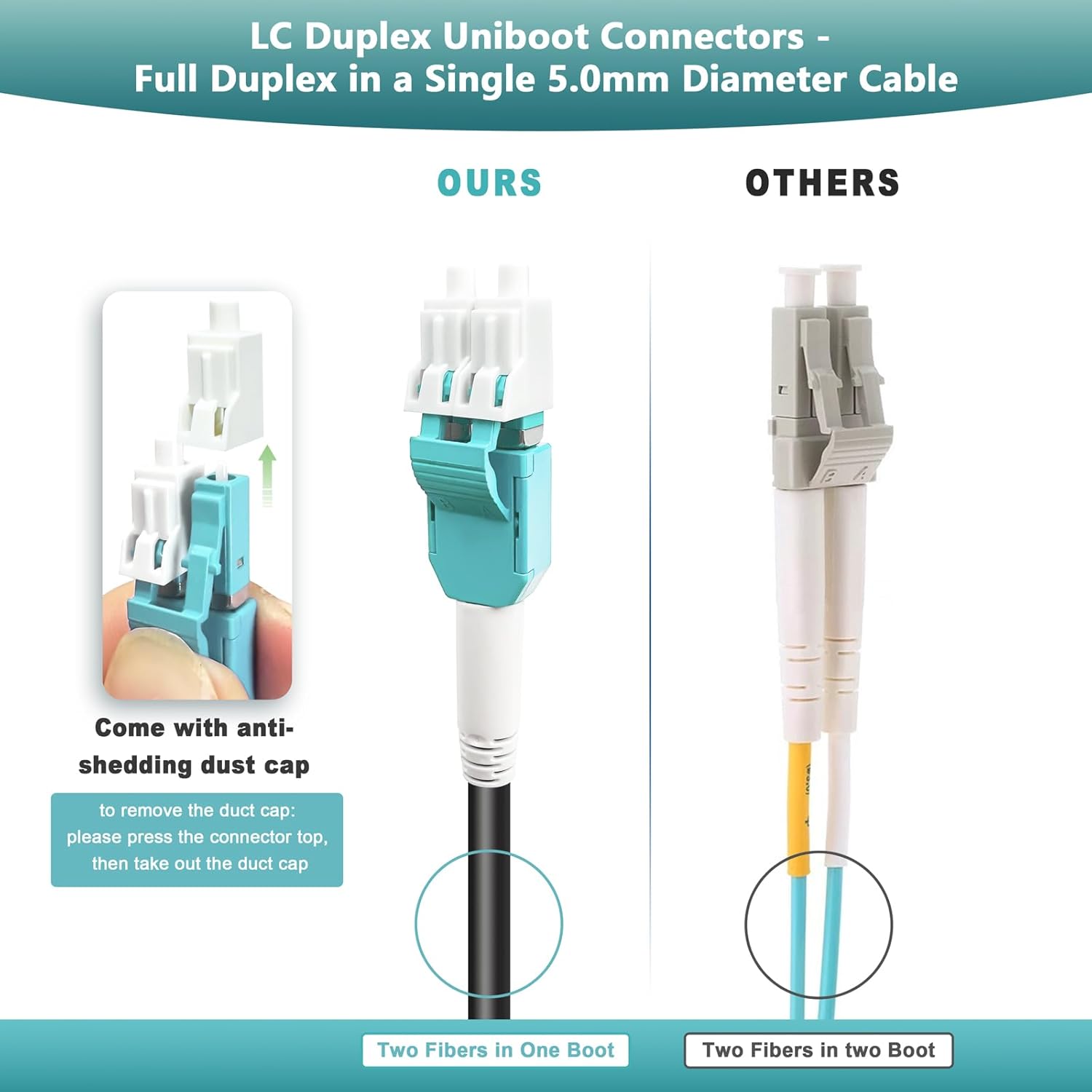

          Multimode OM3 Duplex LC Uniboot connector: The uniboot design allows one cable to carry two fibers to reduce the cable bulk when routing. LC Uniboot Connectors also enable simplified polarity correction in the field. No tool required
          Connector TypeLC to LC (LC Uniboot Connectors)Polish TypeUPC to UPCFiber ModeOM3 50/125mFiber CountDuplexFiber GradeBend InsensitiveMinimum Bend Radius20/10D (Dynamic/Static)Cable Diameter5.0mmCable JacketTPU (Thermoplastic Polyurethane)Tensile Resistance200/600N (Long/Short Term)Crush Strength2000/3000 N/100mm (Long/Short Term)Cable ColorBlackWavelength850/1300nmInsertion Loss10-100m0.3dB 100-200m0.6dB 200-300m0.9dBReturn Loss55dBMaximum Tension of Pulling Eye245NOperating&Storage Temperature-40~80C

          LC OM3 Multimode Harsh Environment Armored Industrial Fiber Optic Cable
