  • 500ft/150m OD-5mm Industrial TPU OM4 Fiber LC to LC Outdoor Armored Fiber Patch Cable Duplex Multimode Fiber Optic Cable 40G/100G 50/125 OM4 LC-LC with Pulling Eye Kit Installed on one end

500ft/150m OD-5mm Industrial TPU OM4 Fiber LC to LC Outdoor Armored Fiber Patch Cable Duplex Multimode Fiber Optic Cable 40G/100G 50/125 OM4 LC-LC with Pulling Eye Kit Installed on one end

103.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

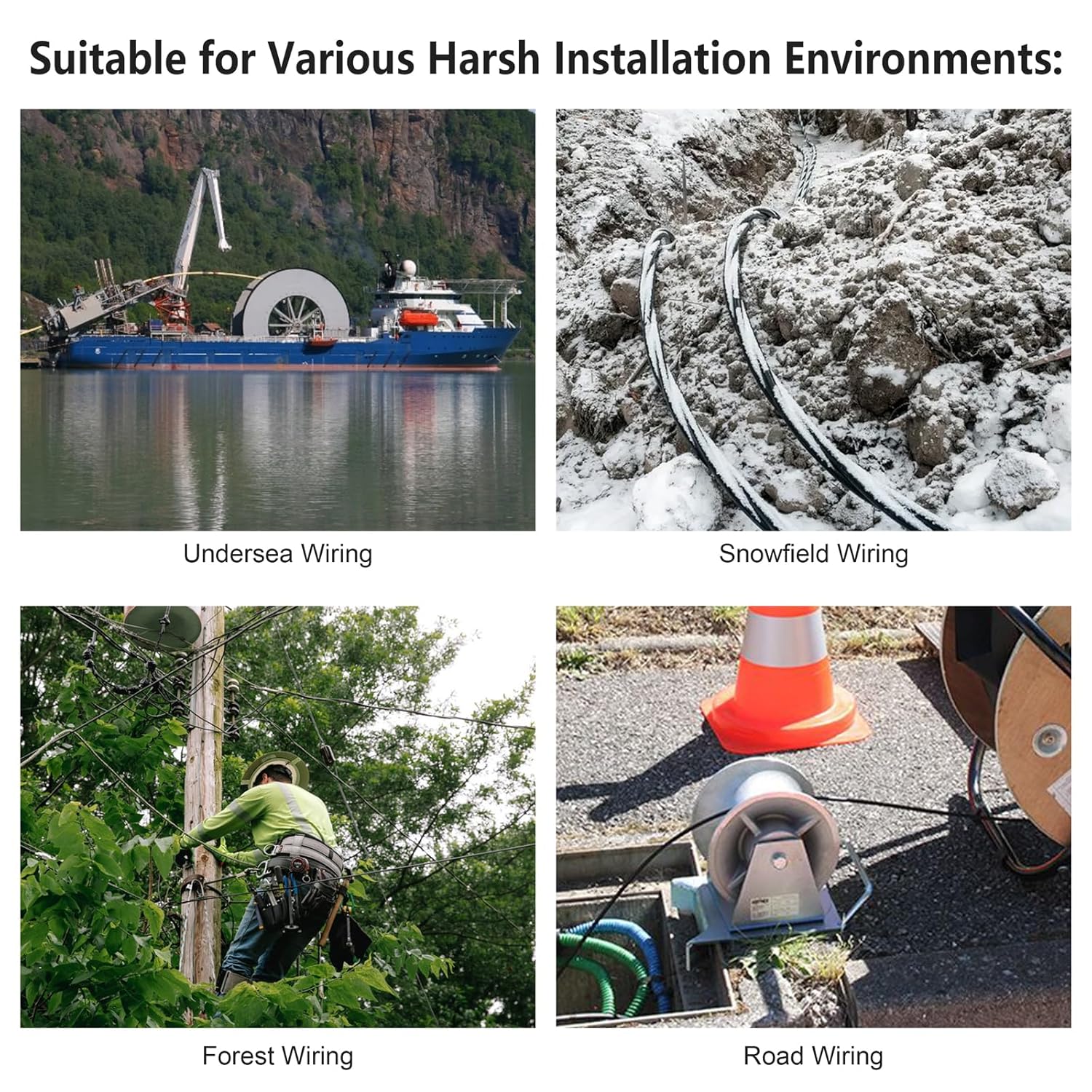

          Industrial OM4 Outdoor Fiber Optic Cable with TPU Jacket: TPU outer jacket features strong tensile strength high abrasion resistance water proof high and low-temperature resistance uv-resistant bending resistant. Suitable for Various Harsh Installation Environments such as roads & snowfields & industrial fields & construction sites.

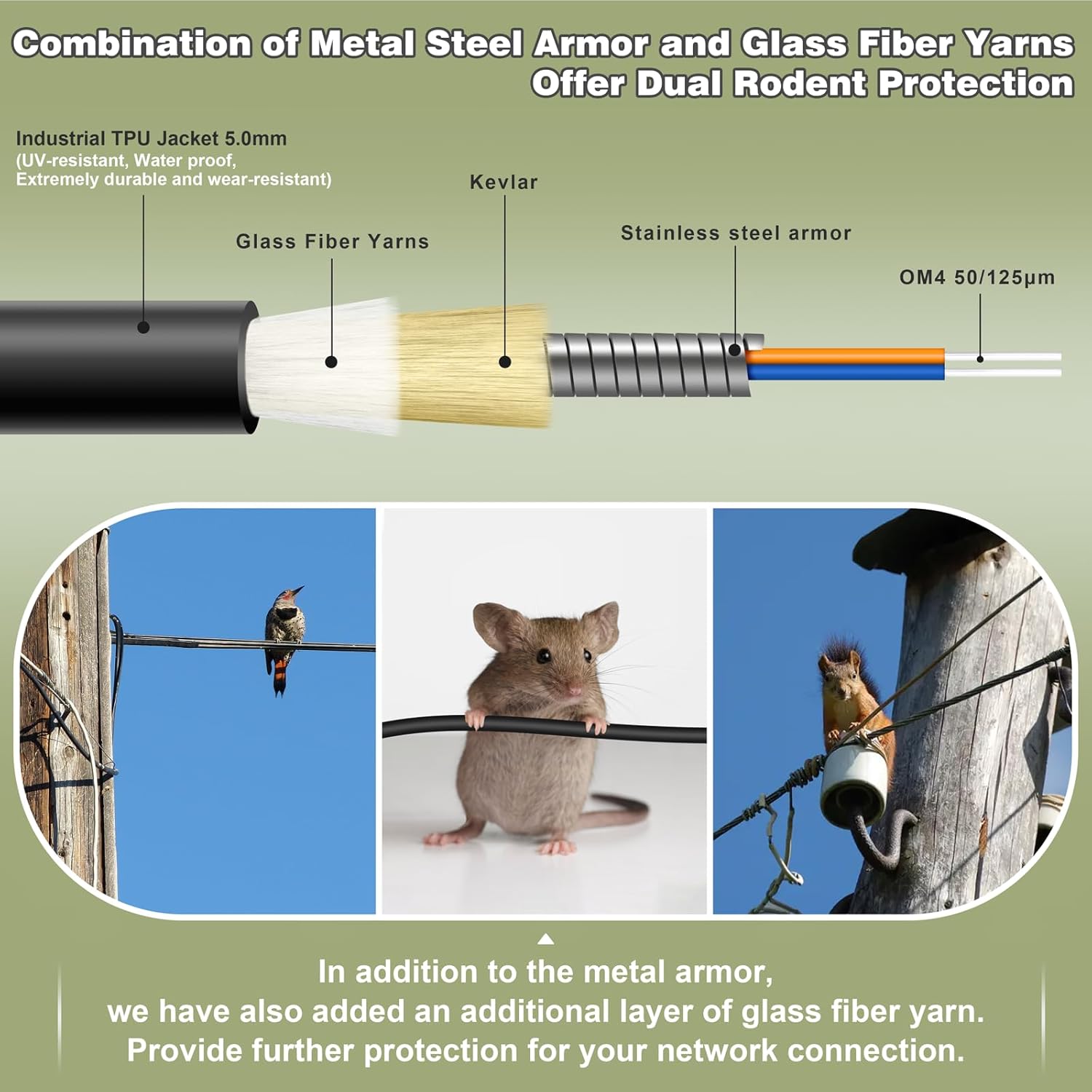

          Combination of Metal Steel Armor and Glass Fiber Yarns Provides Dual Physical Protection Against Rodents

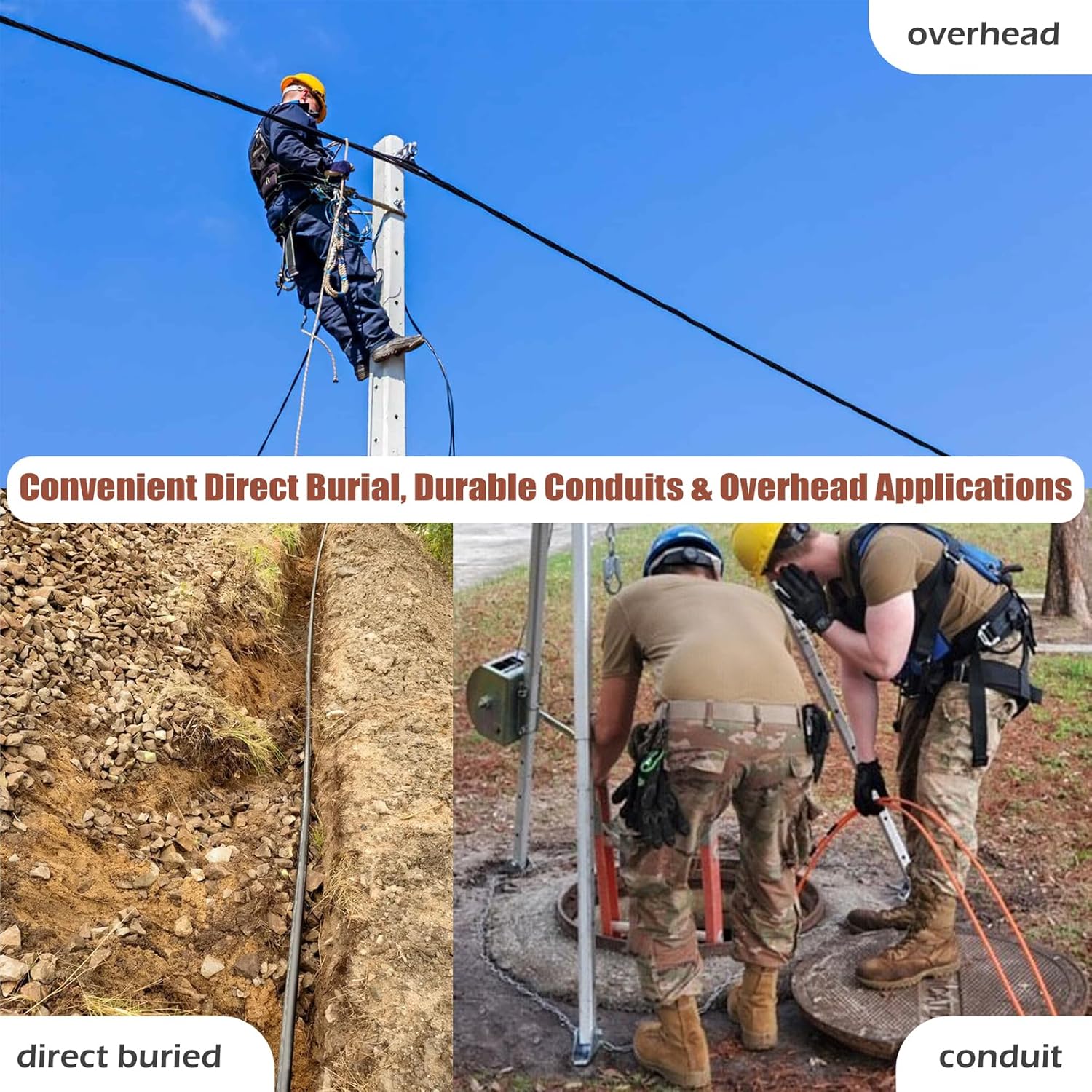

          Can be installed overhead buried directly in the ground or routed through conduits.

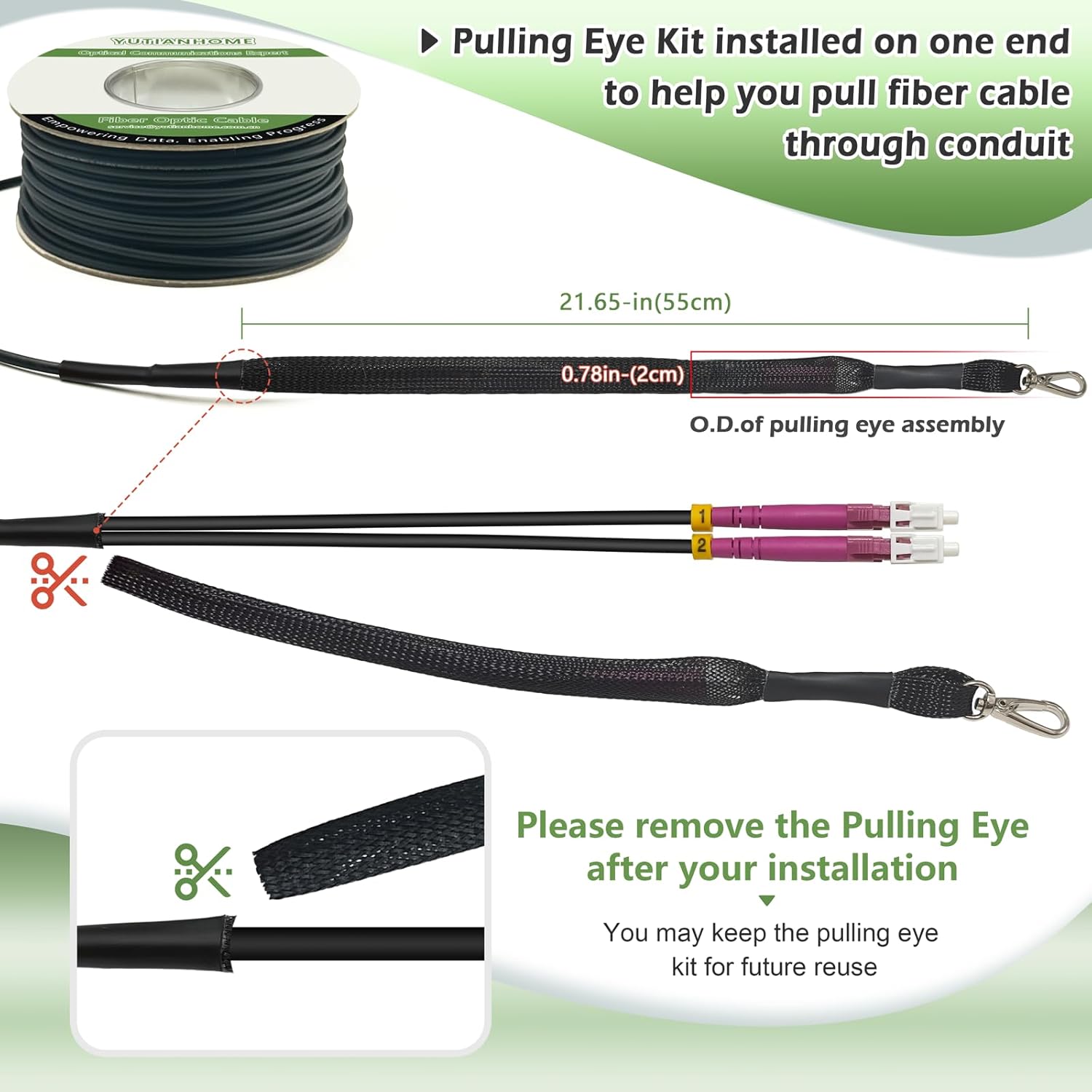

          Pulling eye Pre-Terminated OM4 LC Fiber cables: with swivel pulling eye kit installed on one end to eliminate cable damage during installation. You can remove the pulling eye kit after installation and keep it for reuse. The pulling eye kit is a must for any riser or plenum fiber installation
          5.0mm Outer Diameter Armored Om4 LC: a larger diameter compared to 3.0mm cables: Thicker 5.0mm cables suitable for environments where the cable might be subjected to more wear and tear such as outdoor installations industrial settings or areas with a higher risk of physical damage.
          Connector TypeLC to LCPolish TypeUPC to UPCFiber ModeOM4 50/125mFiber CountDuplexFiber GradeBend InsensitiveMinimum Bend Radius20/10D (Dynamic/Static)Cable Diameter5.0mmCable JacketTPU (Thermoplastic Polyurethane)Tensile Resistance200/600N (Long/Short Term)Crush Strength2000/3000 N/100mm (Long/Short Term)Cable ColorBlackWavelength850/1300nmInsertion Loss10-100m0.3dB 100-200m0.6dB 200-300m0.9dBReturn Loss55dBMaximum Tension of Pulling Eye245NOperating&Storage Temperature-40~80C

          LC OM4 Multimode Harsh Environment Armored Industrial Fiber Optic Cable
