  • Electric Hydraulic Pump 12V Hydraulic Pump for Dump Trailer 1.58 Qt Remotely Controlled Single Acting Dump Truck Hydraulic Pump for Dump Trailers Car Lifting Platforms

Electric Hydraulic Pump 12V Hydraulic Pump for Dump Trailer 1.58 Qt Remotely Controlled Single Acting Dump Truck Hydraulic Pump for Dump Trailers Car Lifting Platforms

103.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description
          Safety&Reliable: The copper wire motor is durable and the oil tank is specially designed so that this electric hydraulic pump will not easily rupture or leak even when running in harsh conditions. The motor and gearbox are connected with carbon steel screws to ensure a tight fit.

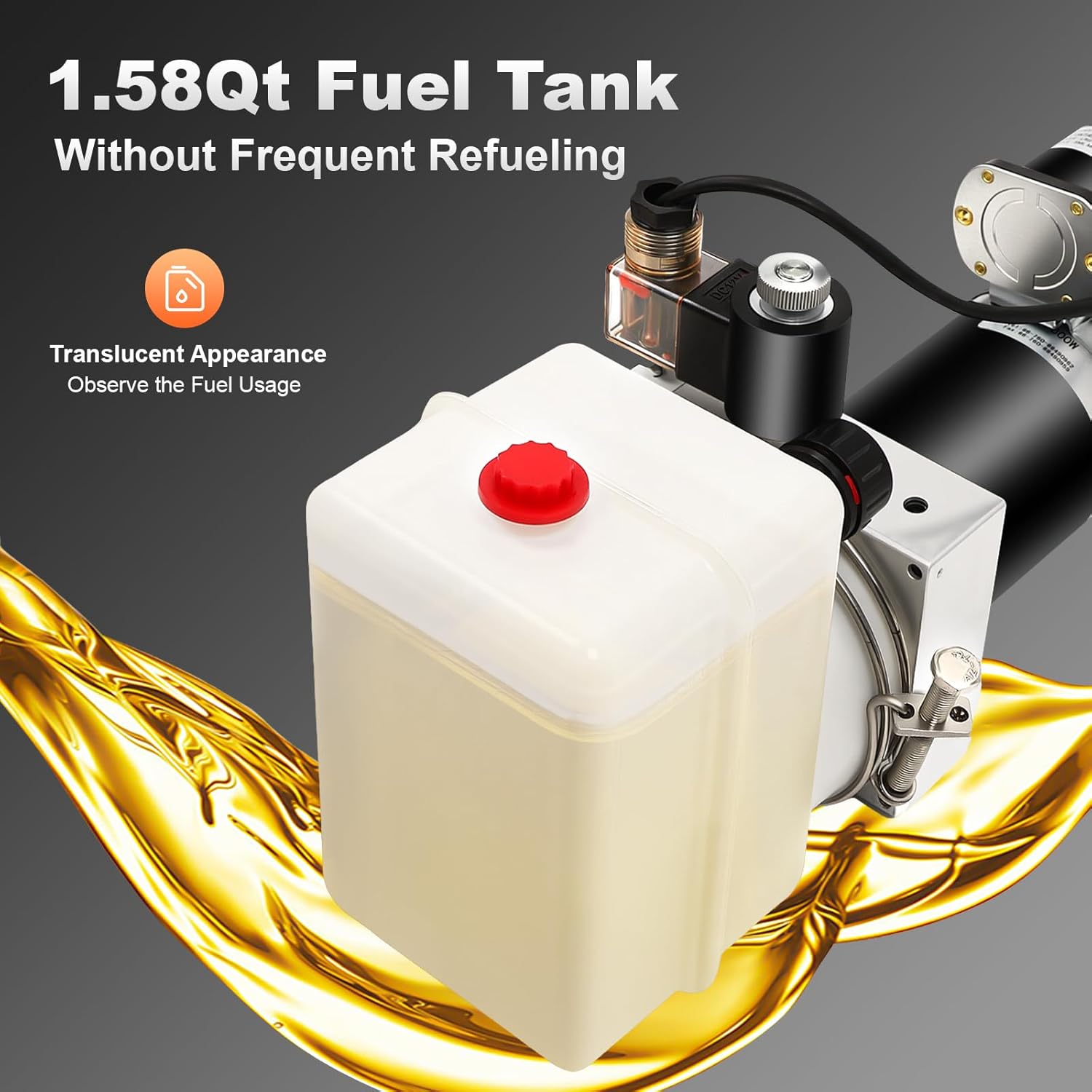

          Thoughtful Design: The large oil storage capacity of 1.58Qt allows you to use the hydraulic power unit easily without frequent refueling. And the translucent fuel tank allows you to observe the fuel usage in time making it easy to refuel in time.
          Low Noise: The copper wire motor of this single acting dump truck hydraulic pump works with low vibration and low noise(about 50 dB) bringing you a relatively quiet working environment.
          Easy To Install: This remotely controlled electric hydraulic pump comes fully assembled and the power supply unit is easy to connect so you can easily use it in a short time.

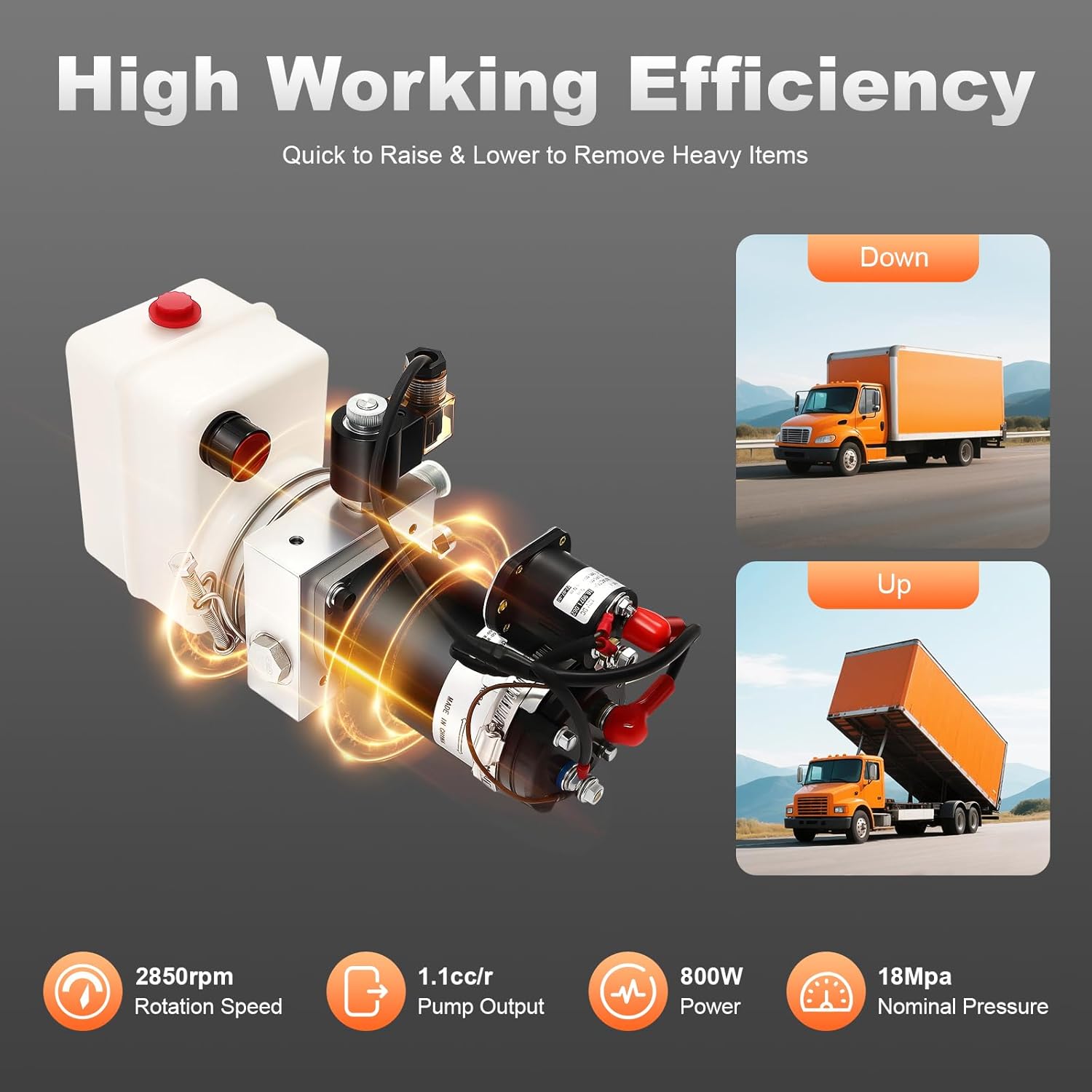

          Quick Starting: The powerful 12V copper wire motor(2850rpm) gives the 800w hydraulic pump fast startup and fast oil output(1.1cc/r) allowing it to lift in a short time.

          Application

          It is a single-acting power unit for power up & gravity down. It is suitable for dump trailers fixed lifting platforms sanitation vehicles car lifting platforms lifting platforms car tailboards fog machines spreaders and dump trucks.

          Specifications

          Color: Black Silver

          Material: Copper Aluminum Plastic

          Surface Treatment: Electroplating Painting

          Assembly Required: Yes

          Applicable Medium: Hydraulic Oil(Not Included)

          Fuel Tank Capacity: 1.5L//1.58Qt

          Motor Voltage: DC 12V

          Motor Power: 800W

          Torque: LRG MAX 5 N.m

          Torque: SML MAX 0.6 N.m

          Rotation Speed: 2850rpm

          Pump Output: 1.1cc/r

          Nominal Pressure: 18Mpa

          Noise: About 50db

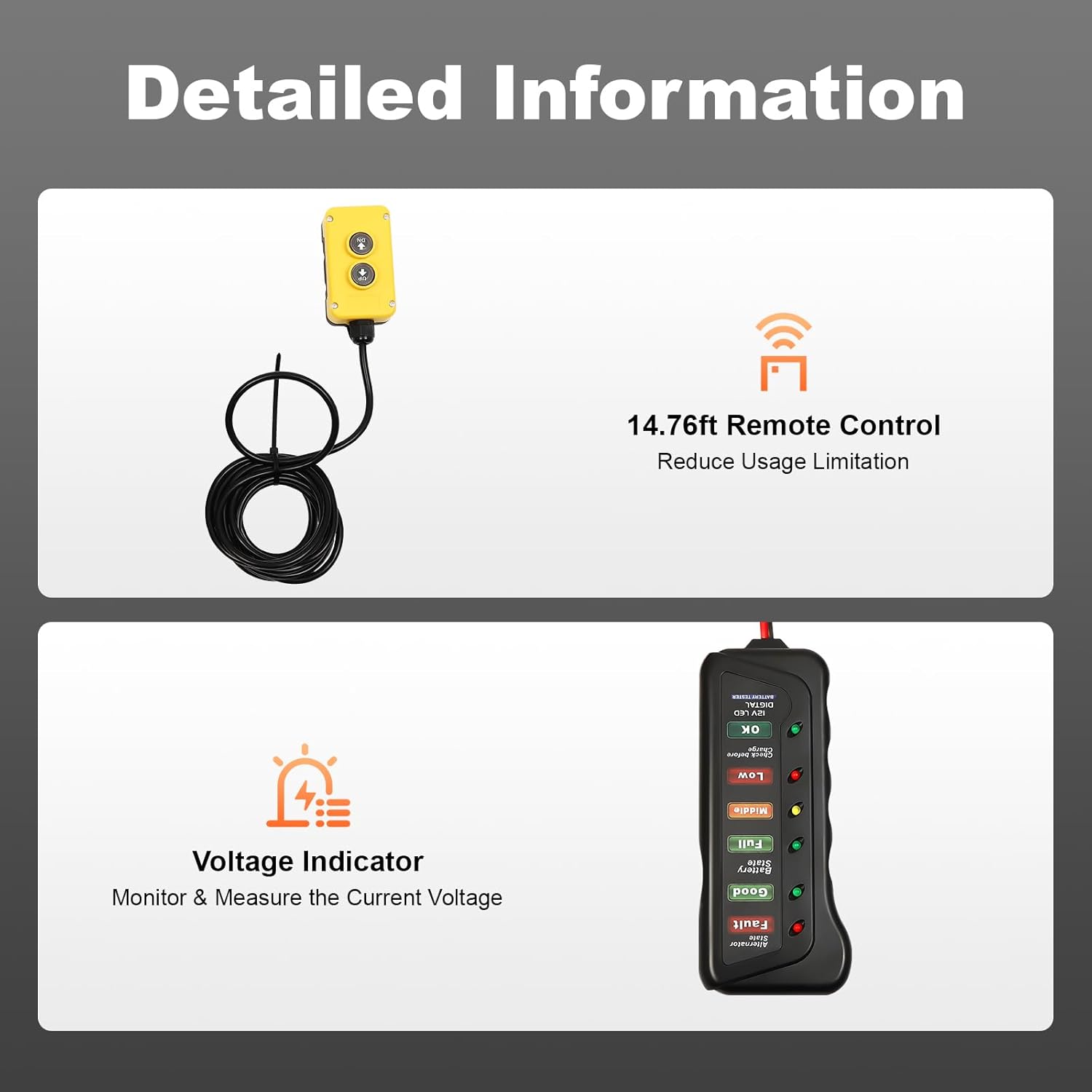

          Remote Control Wire Length: 4.5m/14.76ft

          Gross Weight: 5.8kg/12.78lbs

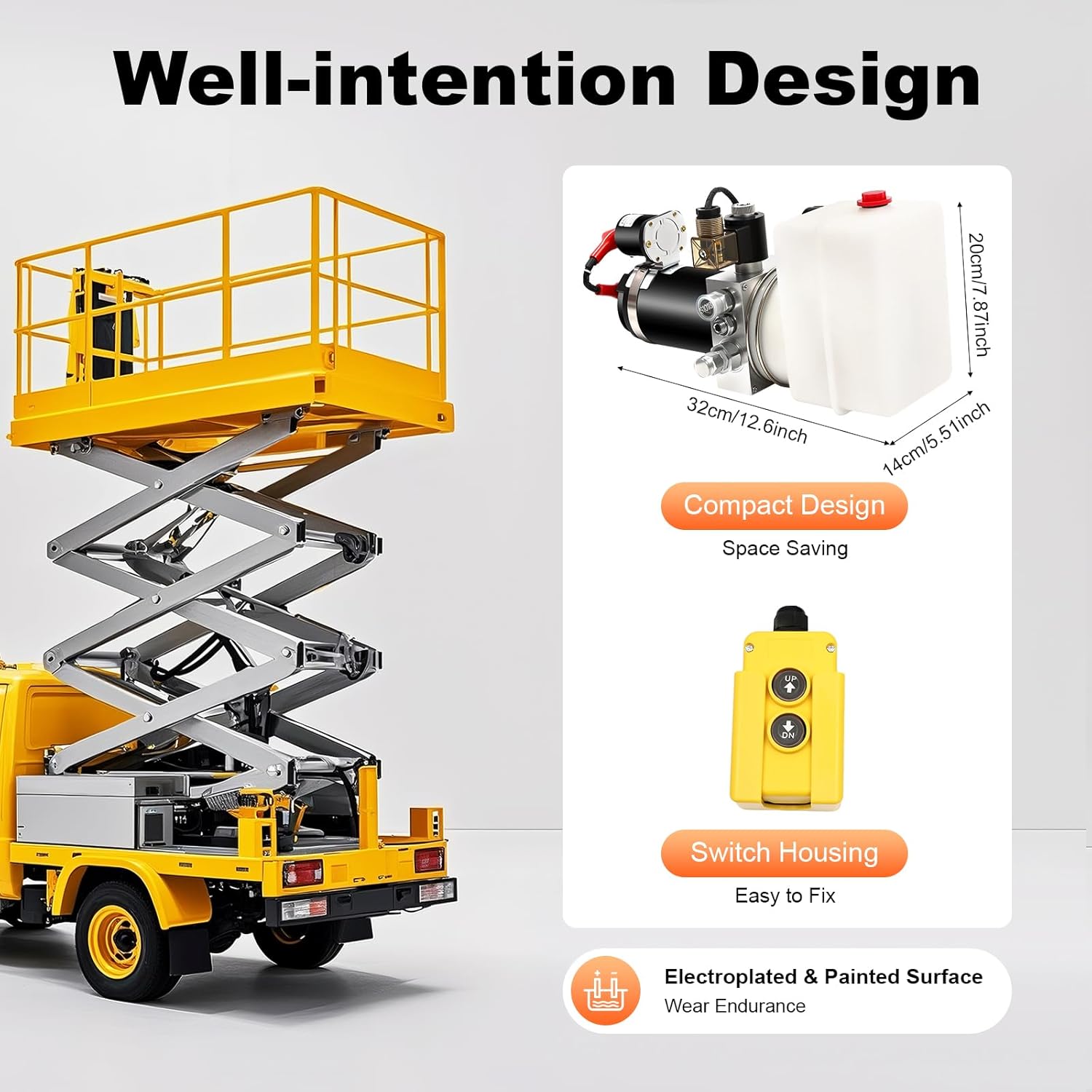

          Product Size: 14*20*32cm/5.51*7.87*12.6in

          Pakage Size: 38*23*21cm/14.96*9.06*8.27in

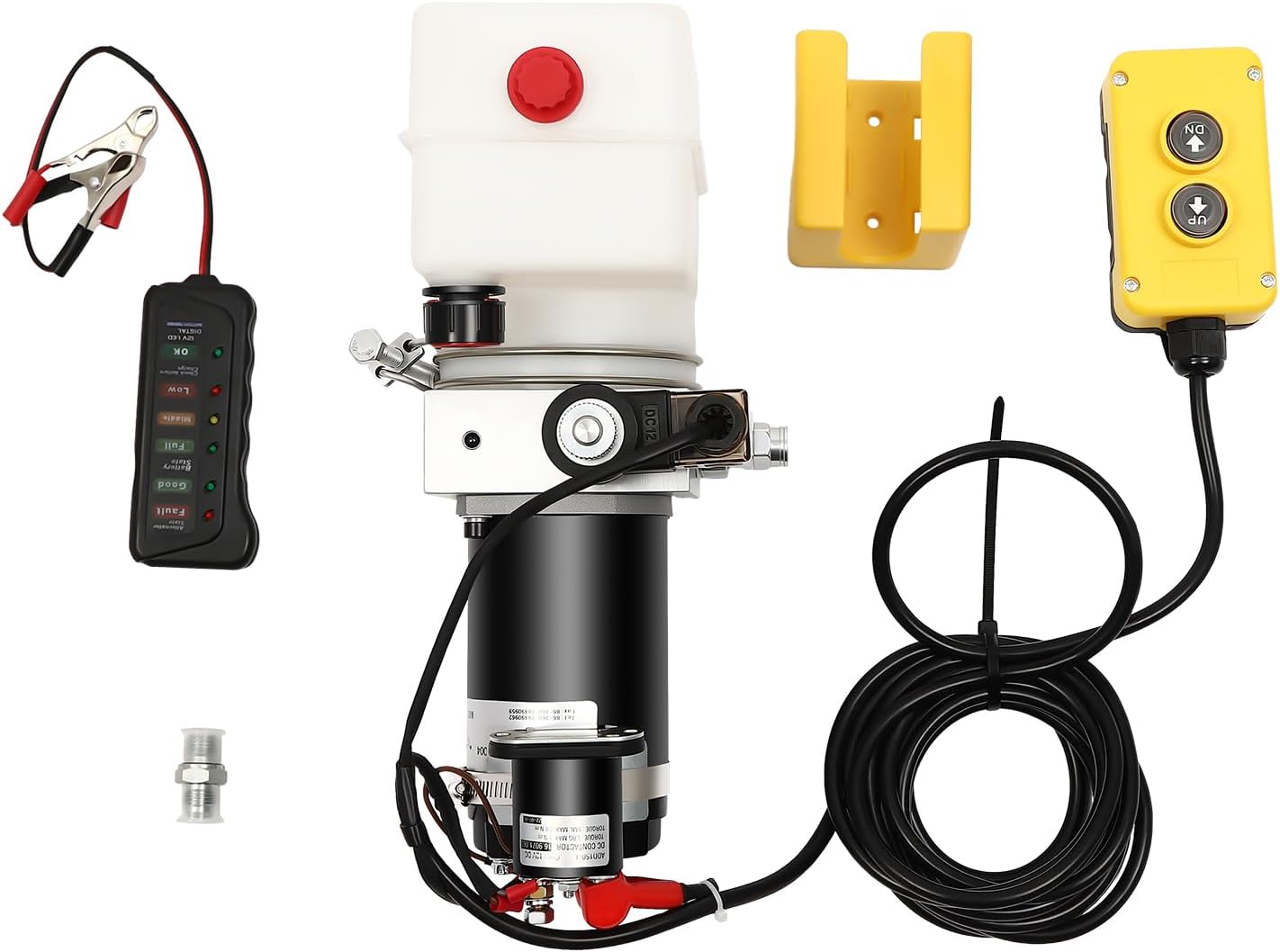

          Package Included

          1*Electric Hydraulic Pump

          1*Voltage Indicator

          1*Switch Housing

          1*Connector

          Notes

          1.Please check the size carefully before ordering.

          2.his product is applicable to vertical and horizontal directions but cannot be tilted or inverted.
