• Designed for single din and double din dash openings.
• Smart Chip and Latest independet Bluetooth 5.3 with extra antenna with Wireless Apple Carplay & Wireless Android Auto touchscreen.
• DSP with 10-band EQ setting 4.2 channel pre amplifier (RCA) peak power Max 60W*4 output 2 subwoofer audio output.

Expansive single din 10.1-inch IPS HD full touchscreen Resolution of 1280*720; Wired and WIRELESS connectivity to Apple CarPlay and Android Auto with voice control; Upgraded Smart Chip and High-Quality Bluetooth 5.3; HiFi Sound Quality with built in DSP 4.2 channel Pre Amplifier Max output 60W*4 2 Subwoofers ; AM/FM Radio; Live Full view or background GPS Navigation; Wired Mirror link to IOS and android; Including Rear Camera; Supporting Steering Wheel Control; 3A fast charging port.

USB play music or wired carplay or airplay.

Support USB quick charge and TF playback.

• Independent Bluetooth 5.3 module and the Smart Chip ensures faster pairing and connection reducing delays;
• The extra antenna significantly boosts signal strength extending the range and minimizing signal drop-offs. Minimizing electronic noise ensuring connection remains smooth and stable.

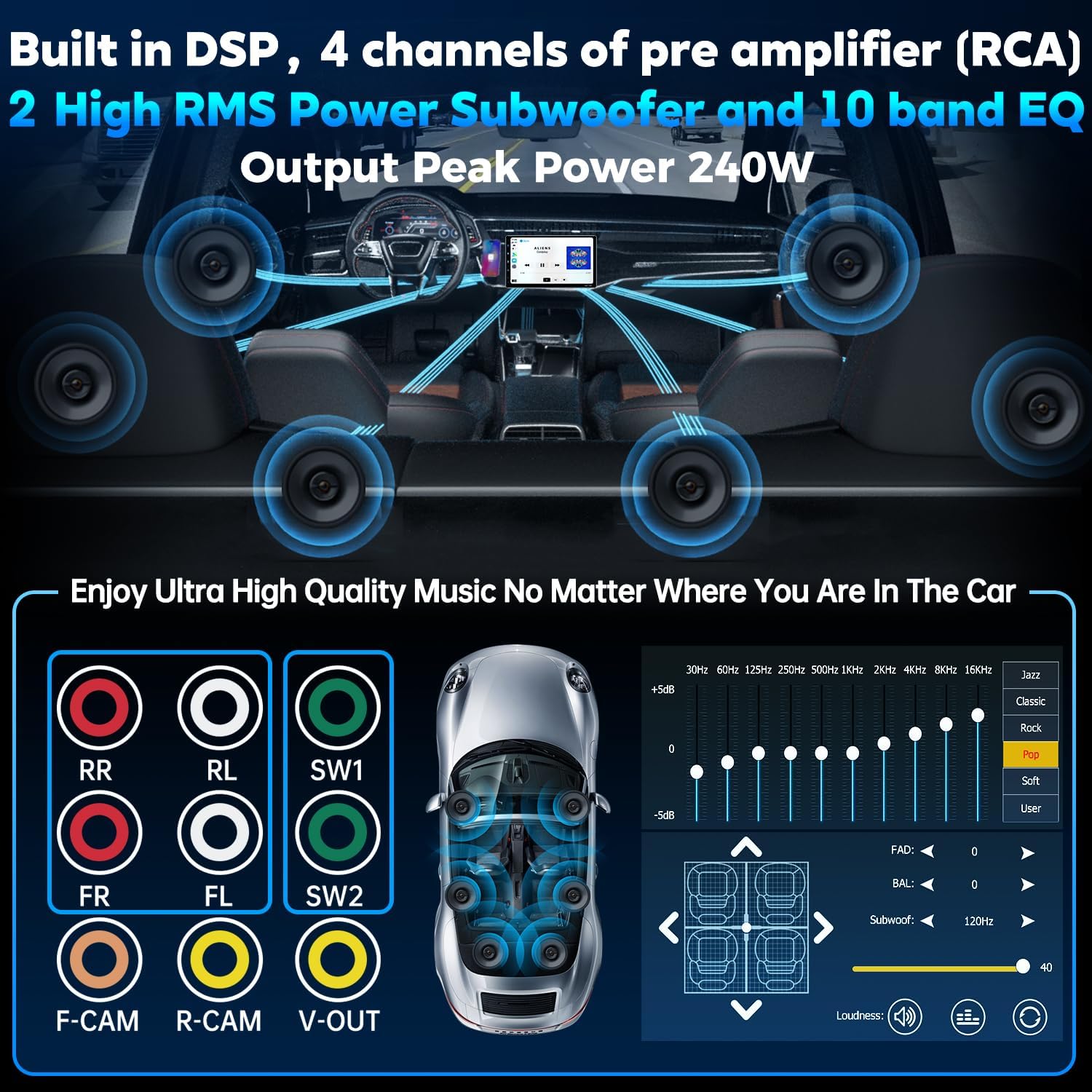

• Upgrade 2.0 Channel to 4.2 Channel pre amplifier (RCA) 40W*4
• Elevating car play display with precision 10-band equalization. Perfection ideal balance for music.
• Supporting the integration of extra 2 subwoofers delivering deep resonating bass enveloping a rich and immersive audio experience.

• By incorporating an advanced heat sink and expanding the space for heat reduction effectively minimizing the impact of overheating on drivescreen sound quality.
• Ensureing radios multimedia player experience remains exceptional and uninterrupted even during extended use.

• Engage in a comprehensive full-view navigation mode for detailed route visualization and optimal guidance;
• Opt for background navigation when audio is on for a subtle overlay for essential information without interrupting audio experience;
• Seamlessly switch between these modes based on preference.

• Manage essential functions such as navigation audio and calls directly from steering wheel ensuring a safe and hands-on driving experience.
• Experience enhanced usability with intuitive SWC support allowing to stay focused on the road while effortlessly navigating through various features.

Safely Navigate with Ease: Enjoy parking assistance reversing views enhanced night vision and waterproof design for secure and convenient journey.

Enhanced Views Any Angle: Explore wide-angle adjustment on a large touch screen ensuring optimal visibility from every position in car.

• With Video output allowing to share the display content.
• Connect external devices such as gaming consoles DVD players or additional displays.

Notice:

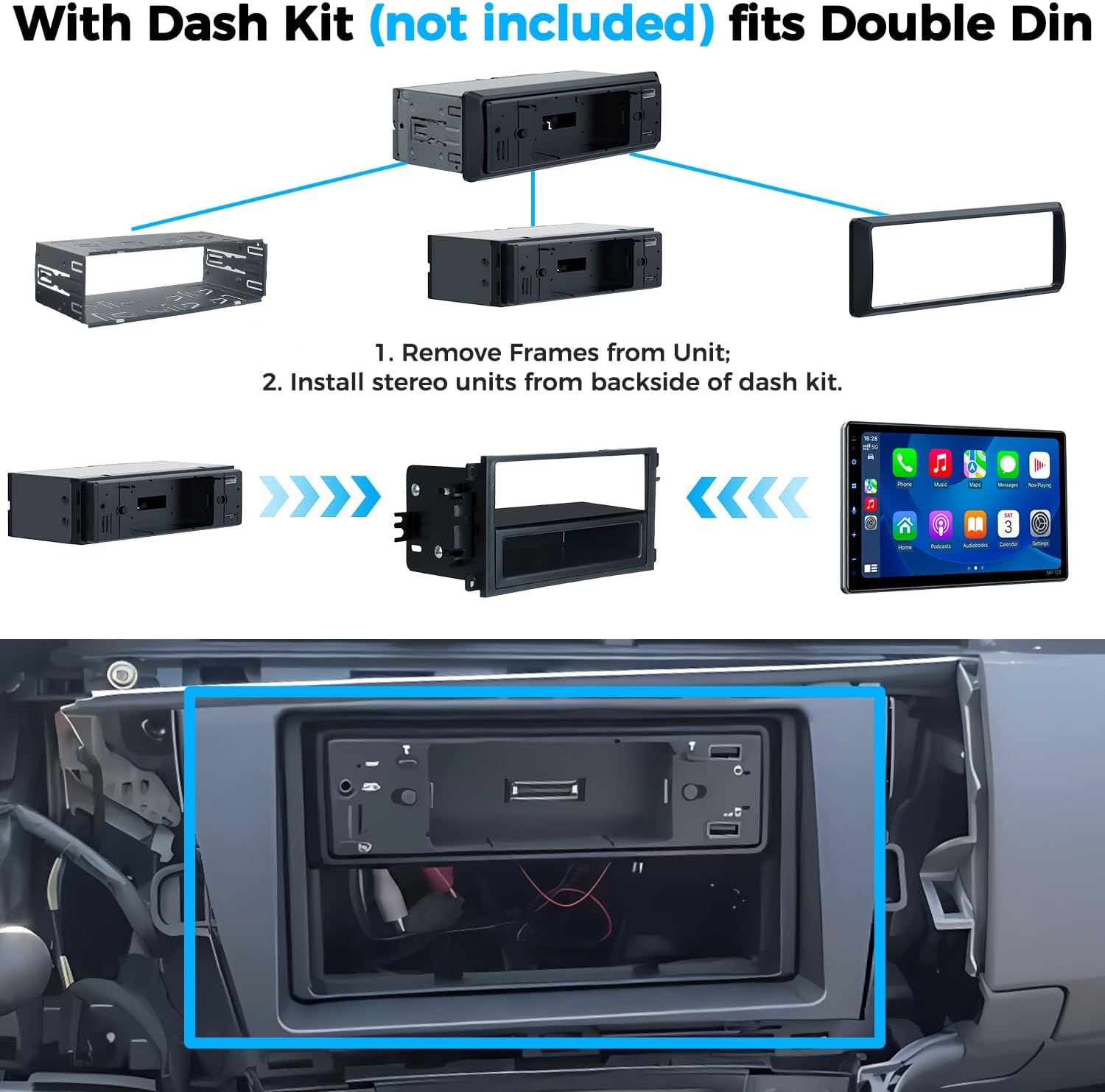

If your car has a double din standard opening you'll need to purchase an extra dash kit separately as it is not included in the package.

• If the head unit powers on for few seconds and then shuts down automatically:

Some cars have ACC wires controlled by Canbus or feature a "delayed shut off" for radios and other components. In such cases the car may not output stable 12V power to our radio. You will need to purchase the appropriate harness adapter that provides accessory power or supports "Retained Accessory Power" for your specific car model. Alternatively if you prefer not to buy the adapter you can find ACC power elsewhere in your vehicle and connect our red wire there.

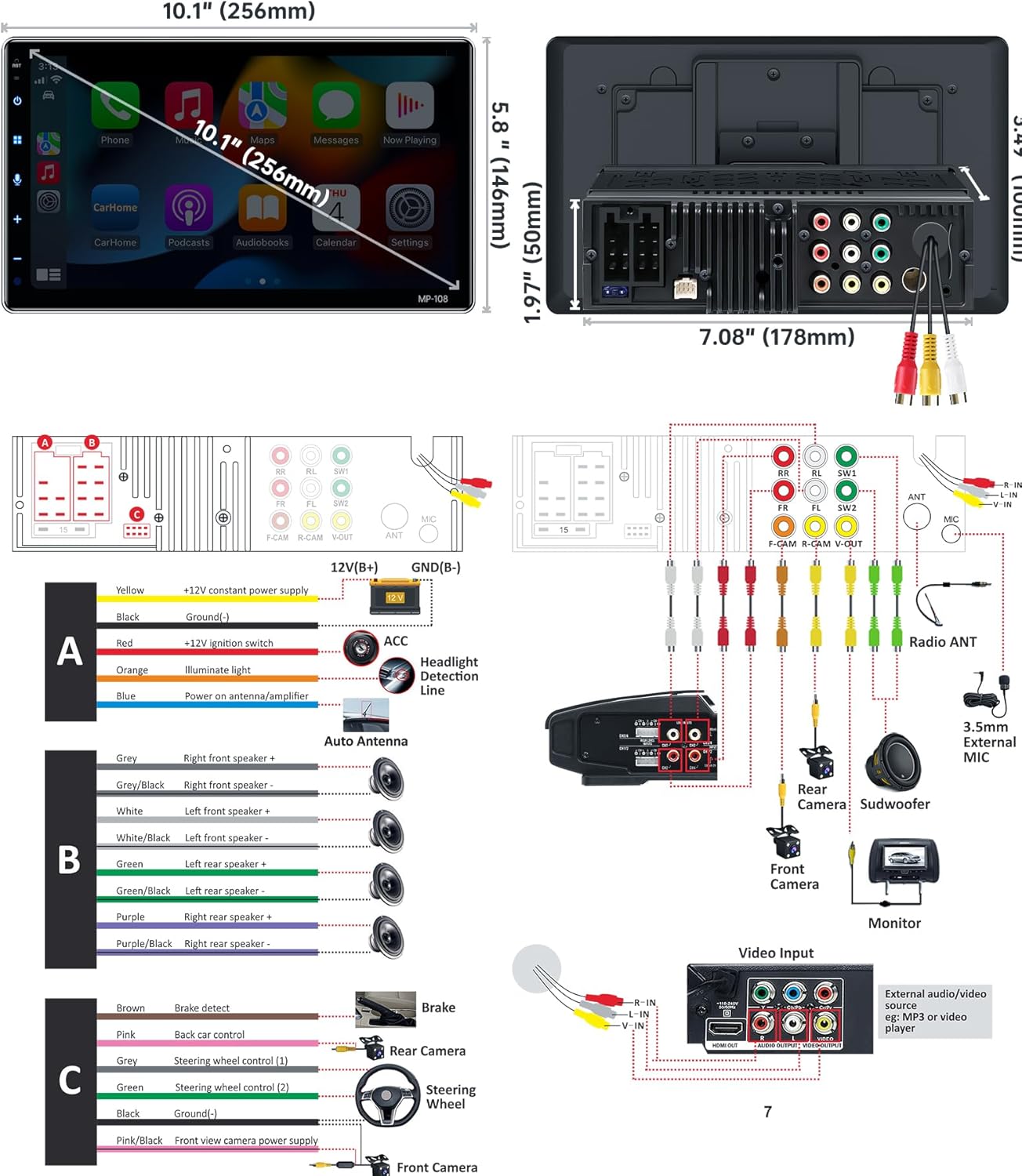

The necessary conditions for powering on the unit are:

1. The Red wire of our harness receives switched 12V power (Car key must be turned on).

2. The Yellow wire of our harness receives 12V power.

3. The Black ground wire of our harness is properly connected.

If you have an electric pen you can test these three wires.

• The car stereo has a memory function. If the ACC line (Red wire) and the B+ line (Yellow wire) are reversed during installation the product will lose its memory function after the power is turned off.
• The car stereo cannot be used in vehicles with a voltage exceeding 14 V such as large trucks. If you intend to use devices with a voltage higher than 14 V you must use step-down conversion wires to avoid damaging the car stereo.

If you encounter any installation or usage confusion rest assured we're here to promptly assist you with resolving the issue.

Bigger more than Bigger

Wireless Apple CarPlay & Android Auto Touchscreen

Unique Upgaraded Versatile Connections

Versatile Connectivity Options with Rapid Charging

Independent Bluetooth 5.3 Module Addition Antenna

Upgraded Hi-Fi Sound Quality

Built in DSP 4.2 Channel 10 Band EQ & 2 Subwoofer

Advanced Heat Management with Heat Sink Expansion

Safe and Hands-On Wheel Driving Experience

Versatile Navigation Options

Seamless Integration with Steering Wheel Control

Backup Camera Included

Wide-Angle Adjustment

Entertainment With 10.1 Screen

Package List

Troubleshooting
