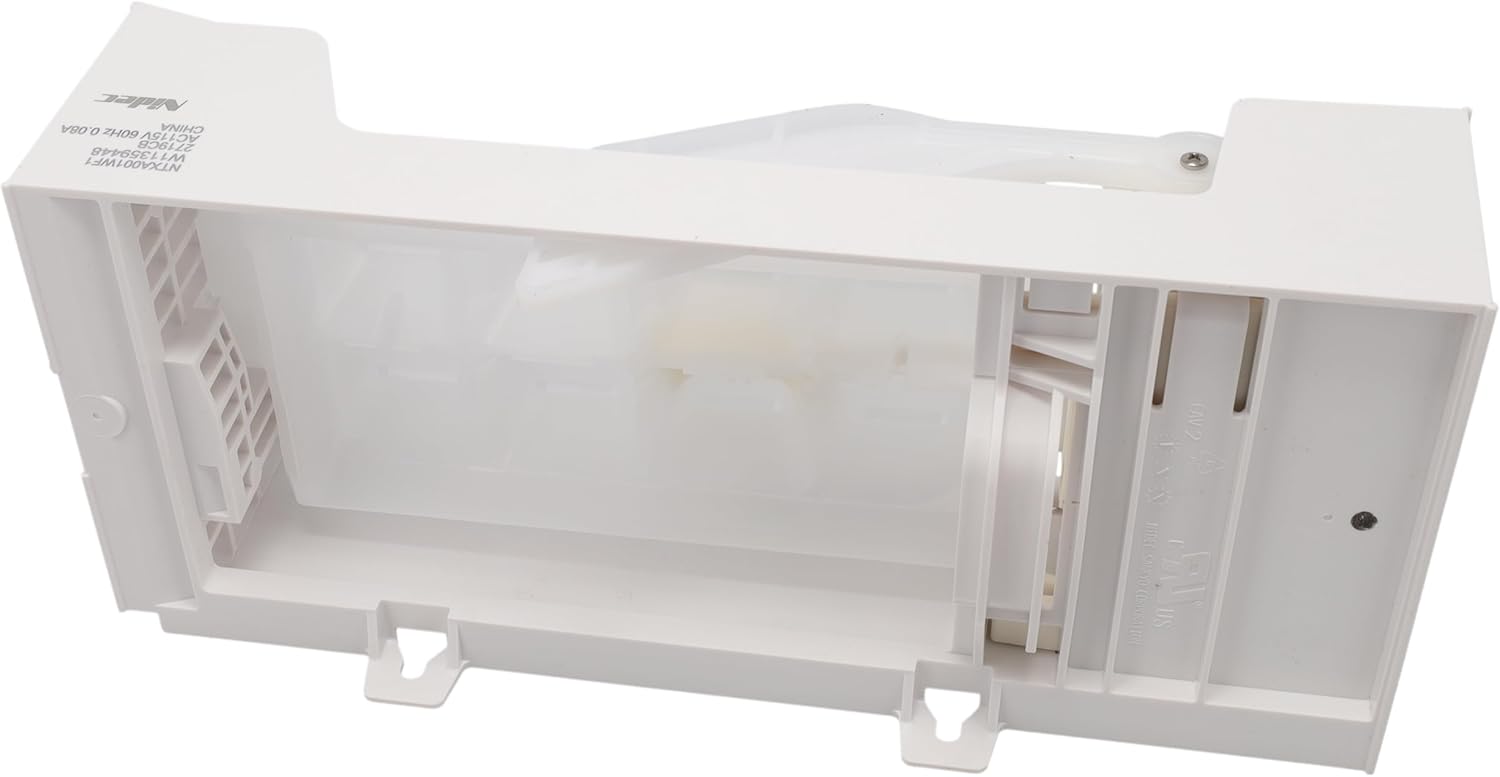

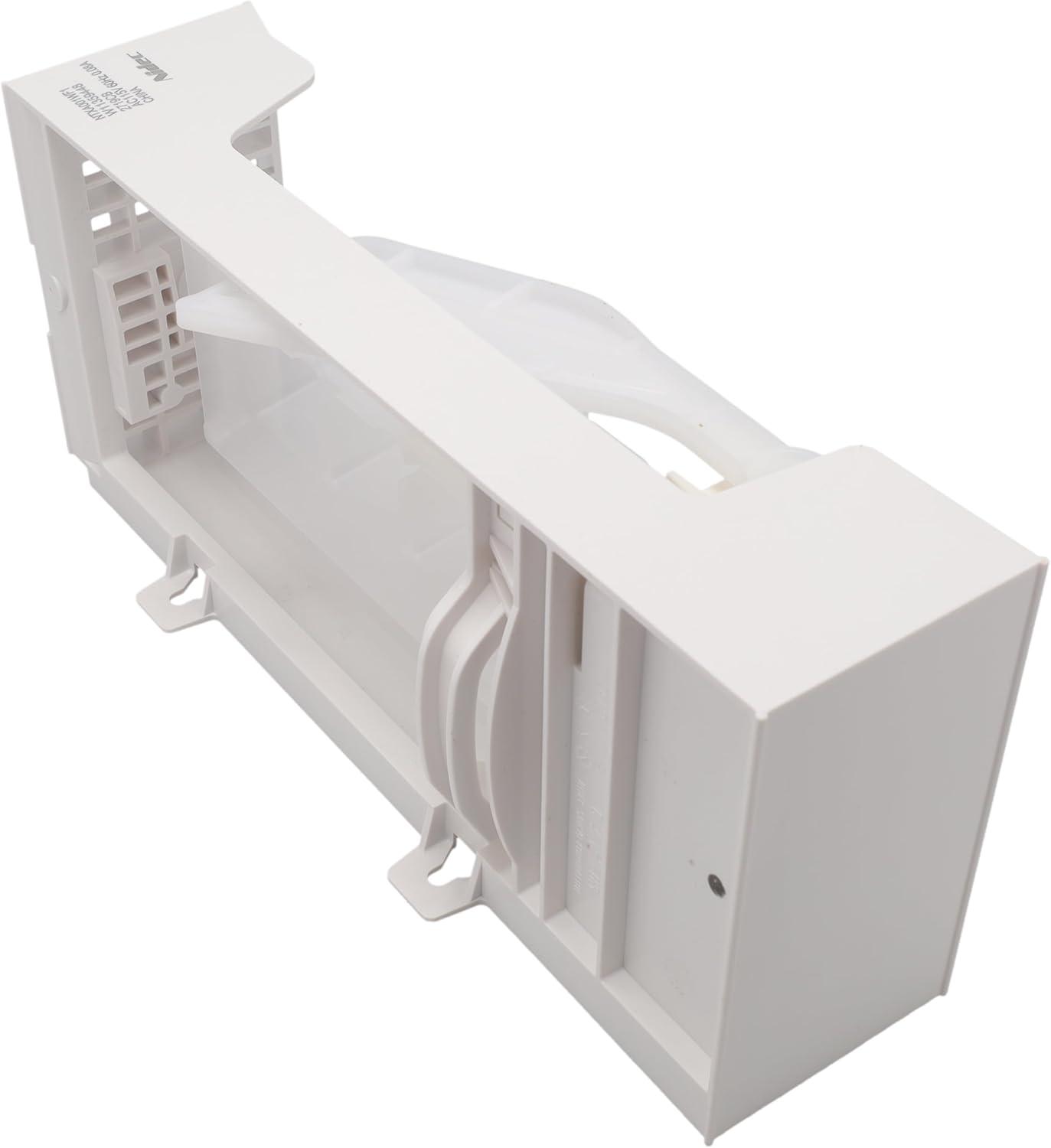

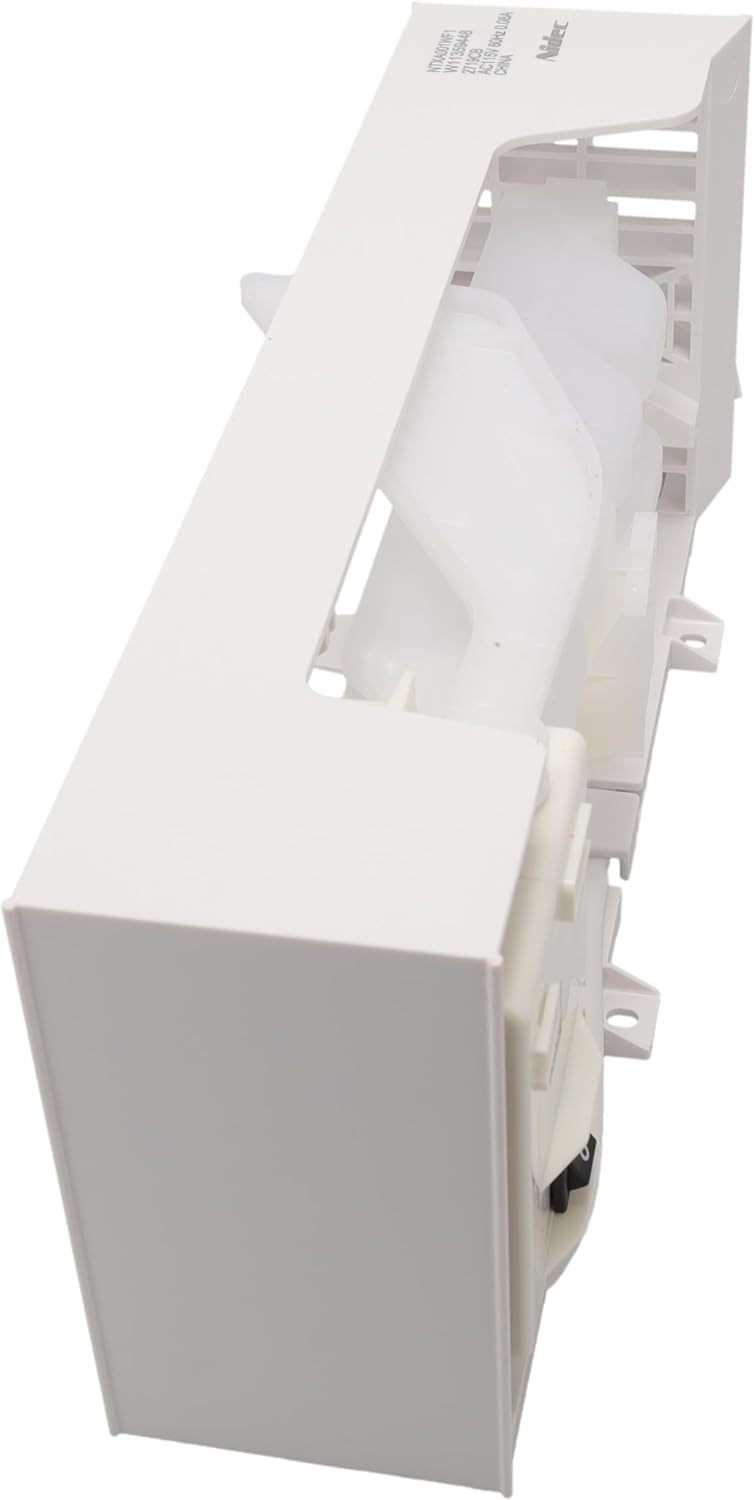

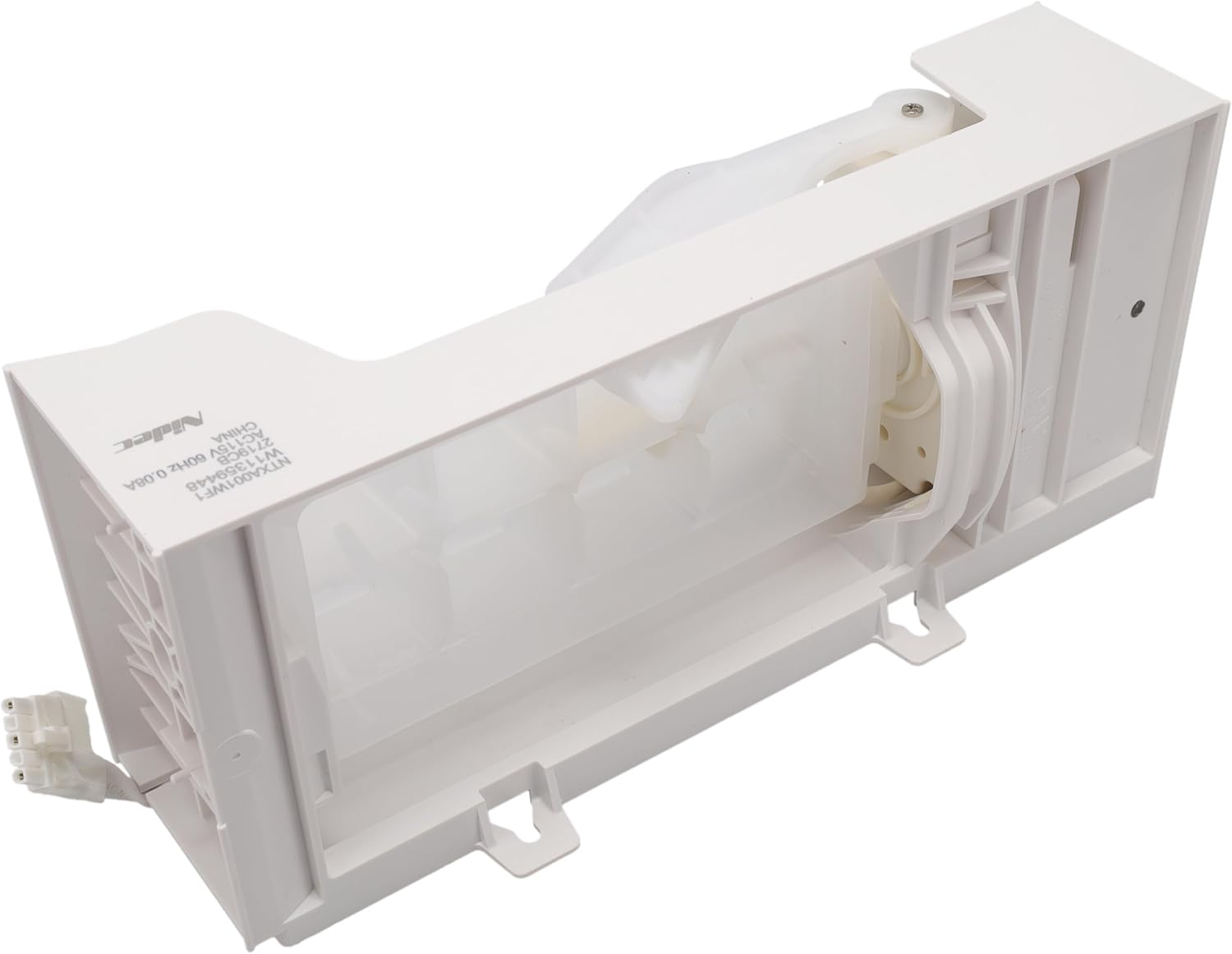

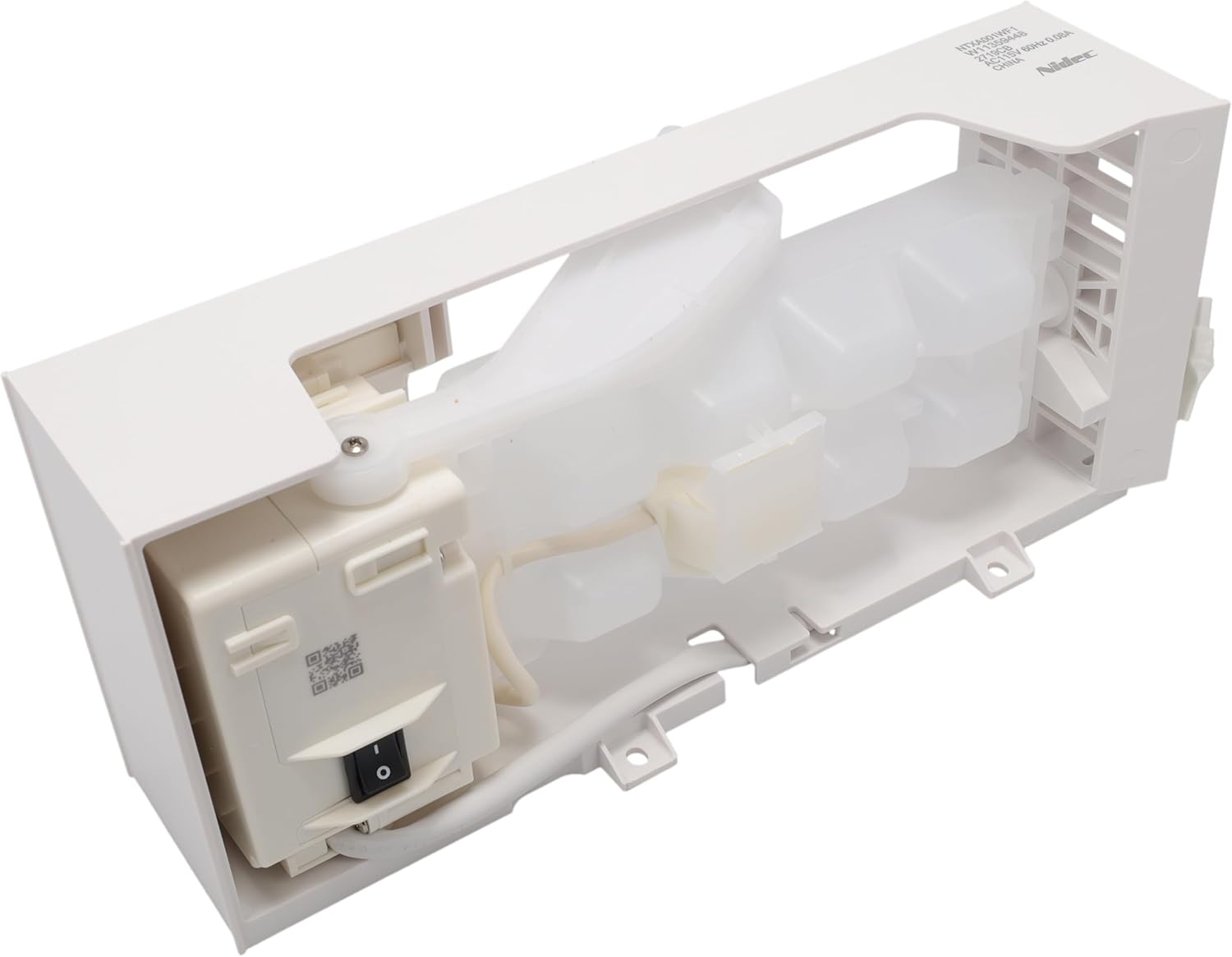

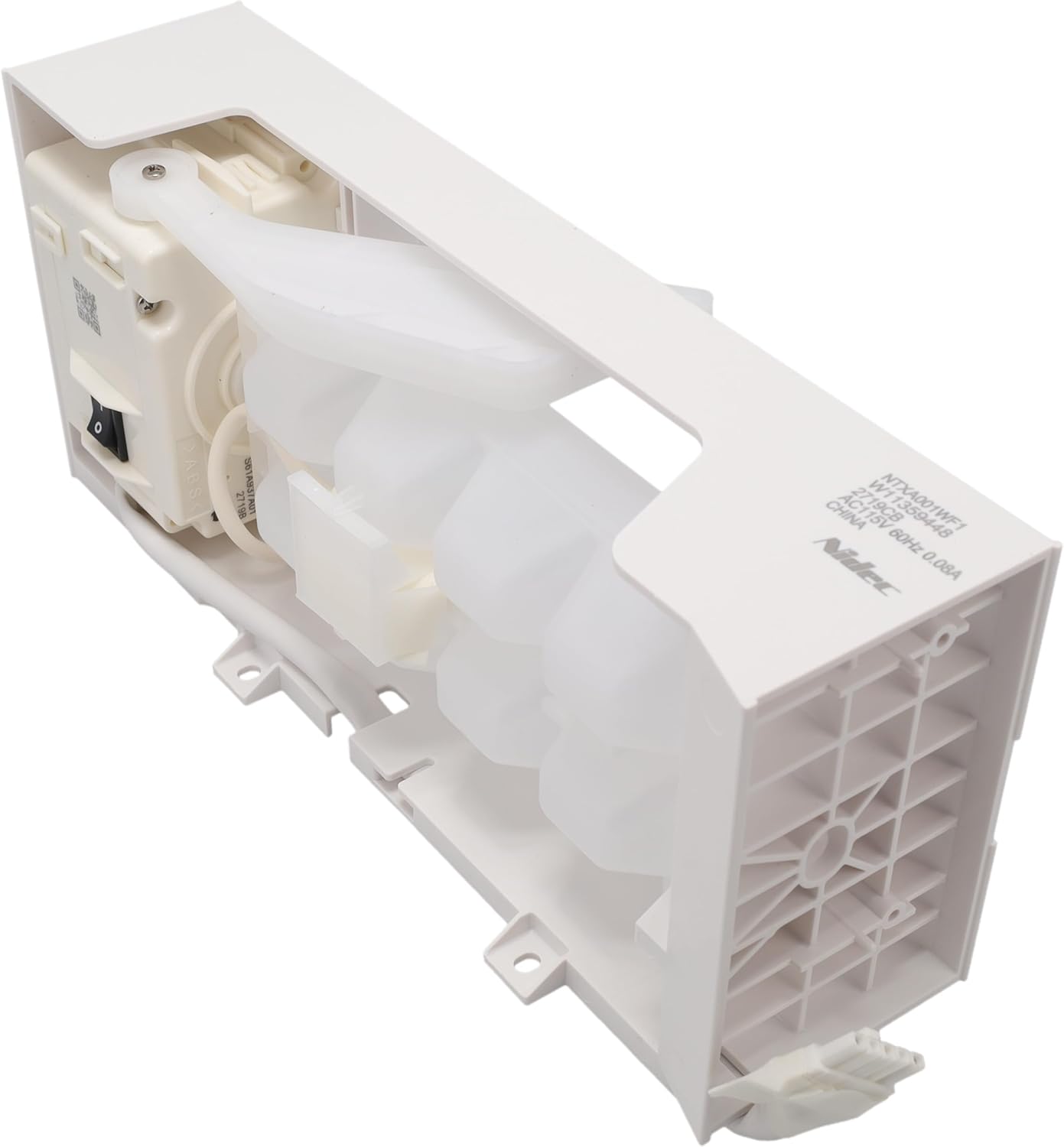

Ice Makers and their harnesses are crucial components in your refrigerator. They come in many different shapes and sizes and have different specifications depending on the Model they are being installed on!

You can test your Refrigerator Ice Maker by:

• Visual Inspection and Power Check | Water Supply Check | Ice Maker Functions | Thermostat and Heater | Ice Maker Module and Controls | Mechanical Components | Consult the Manual

1. Visual Inspection and Power Check - Visual Inspection: Start by visually inspecting the ice maker for any obvious signs of damage leaks or loose connections. | Power Check: Ensure the ice maker is properly plugged in and receiving power. Check the power cord and outlet for any issues. Use a multimeter to verify voltage at the ice makers electrical connections.

2. Water Supply Check - Water Supply: Confirm that the water supply line is connected and turned on. Disconnect the water line temporarily to check for water flow. | Water Inlet Valve: Test the water inlet valve using a multimeter to check for continuity. If the valve doesnt have continuity it may be defective and needs replacement.

3. Ice Maker Functions - Manual Test: Depending on the ice maker model you may be able to manually initiate an ice-making cycle. Refer to the manufacturer's manual for specific instructions on how to do this. | Observe Operation: During the cycle observe the ice maker to see if it fills with water freezes ice cubes and ejects them into the ice bin. Note any unusual sounds or movements that could indicate a problem.

4. Thermostat and Heater - Thermostat: Test the mold thermostat for continuity using a multimeter. Compare the readings with the manufacturers specifications. If the thermostat is faulty it may not signal the ice maker to start producing ice. | Heater: Check the heater element for continuity and proper operation. The heater ensures that ice cubes release from the mold when ready. Replace it if its defective or damaged.

5. Ice Maker Module and Controls - Module Testing: The ice maker module controls the ice-making cycles timing and operations. Follow the manufacturers instructions to test its functions such as advancing the cycle manually. | Control Board: Some ice makers have a control board that manages various functions. Test it for proper voltage and functionality using a multimeter.

6. Mechanical Components - Gears and Motors: Inspect gears motors and switches for any visible signs of wear or damage. Ensure that all moving parts are functioning correctly without obstruction. | Manual Activation: Manually activate mechanical components to ensure they operate smoothly and perform their intended functions.

7. Consult the Manual and Manufacturer Support - Manual: Always refer to the ice makers manual for specific testing procedures and troubleshooting tips. | Manufacturer Support: Contact the manufacturer or visit their website for additional assistance especially if you encounter specific error codes or technical issues.

Started by professional service technicians with a combined 50+ years experience in the service and repair industry our goal was to bring practical repairs to customers at a reasonable price.

Watch the video below for more detailed help in locating your model information!

Know your Model Number

Inspecting and Testing Faulty Ice Makers

Inspecting Faulty Ice Makers

Testing Faulty Ice Makers

Testing your Ice Maker explained:

Different Ice Maker and Harness styles:
