  • TC004 Thermal Imaging Camera 320 x 240 TISR Resolution 256 x 192 IR High Resolution 12-Hour Battery Life Handheld Infrared Camera with PC Analysis and Video Recording Supported 32GB SD Card

TC004 Thermal Imaging Camera 320 x 240 TISR Resolution 256 x 192 IR High Resolution 12-Hour Battery Life Handheld Infrared Camera with PC Analysis and Video Recording Supported 32GB SD Card

103.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description
          High Resolution Accurate Measurement: TC004 Thermal Camera has 256x192 ultra-high resolution thermal sensitivity <40mk temperature resolution up to 1F three temperature measurement modes center point / maximum temperature / minimum temperature fast 25Hz frame rate and temperature range -4F to 662F high resolution. Accurate measurement allows you to detect potential problems early and diagnose problems reliably!

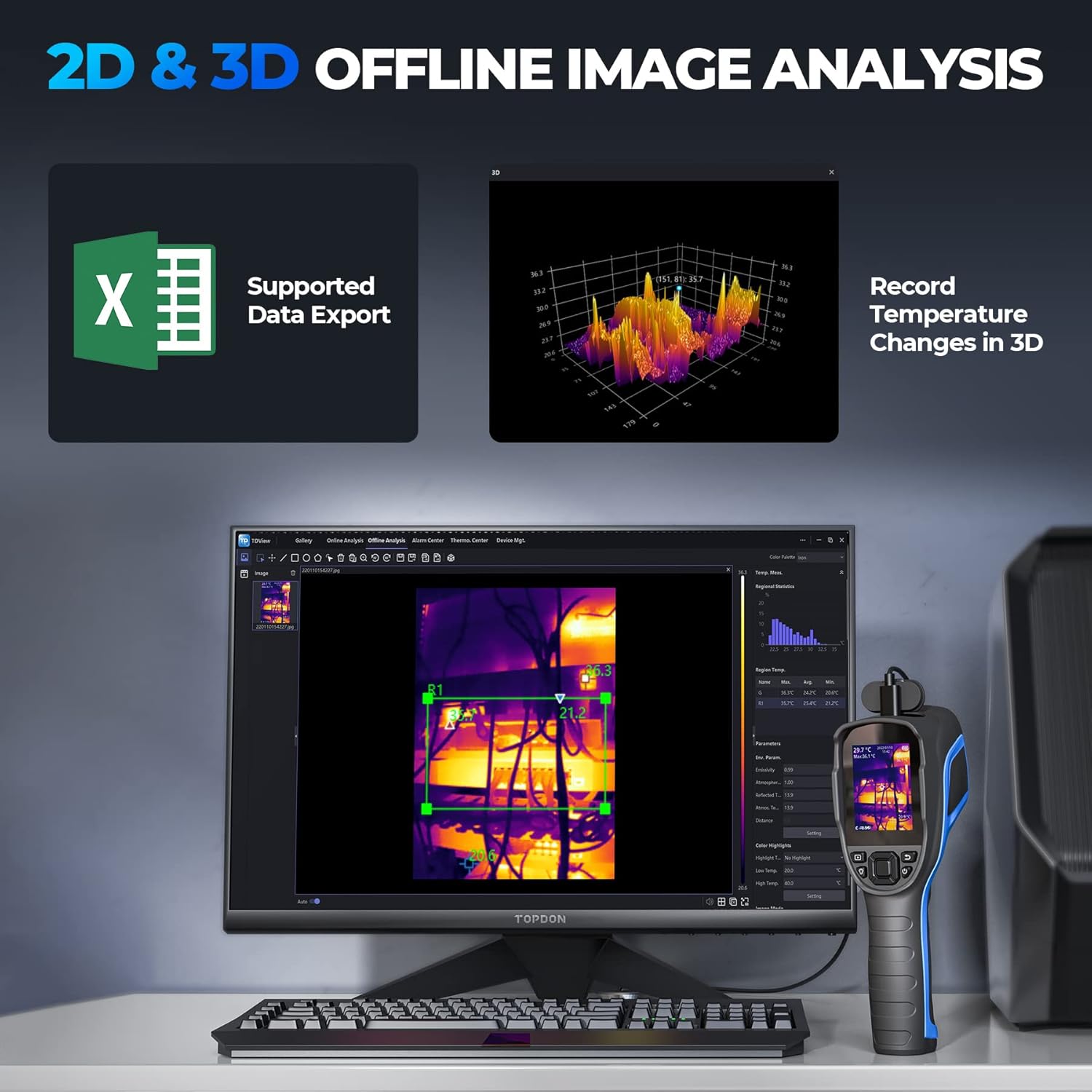

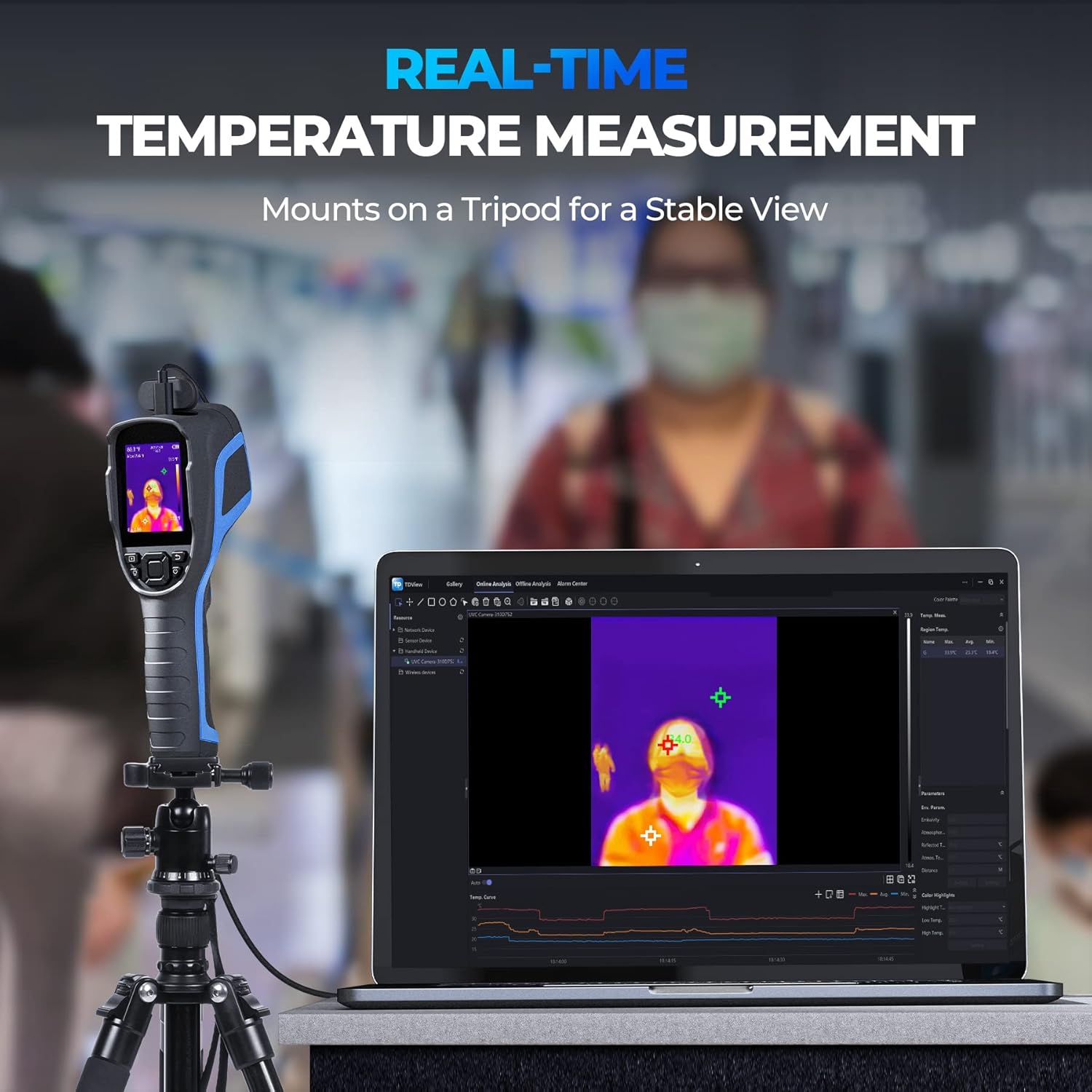

          Free PC Software Upgrade: TC004 Infrared Camera can be connected to a Windows PC (Not compatible with Mac) via USB for online analysis real-time detection of object temperature changes support for 3D imaging point-line surface temperature measurement. Up to 32GB memory support memory expansion you can also stream the device in real time to a laptop or computer for offline temperature measurement analyze the saved images export data reports and dig deeper into the data.

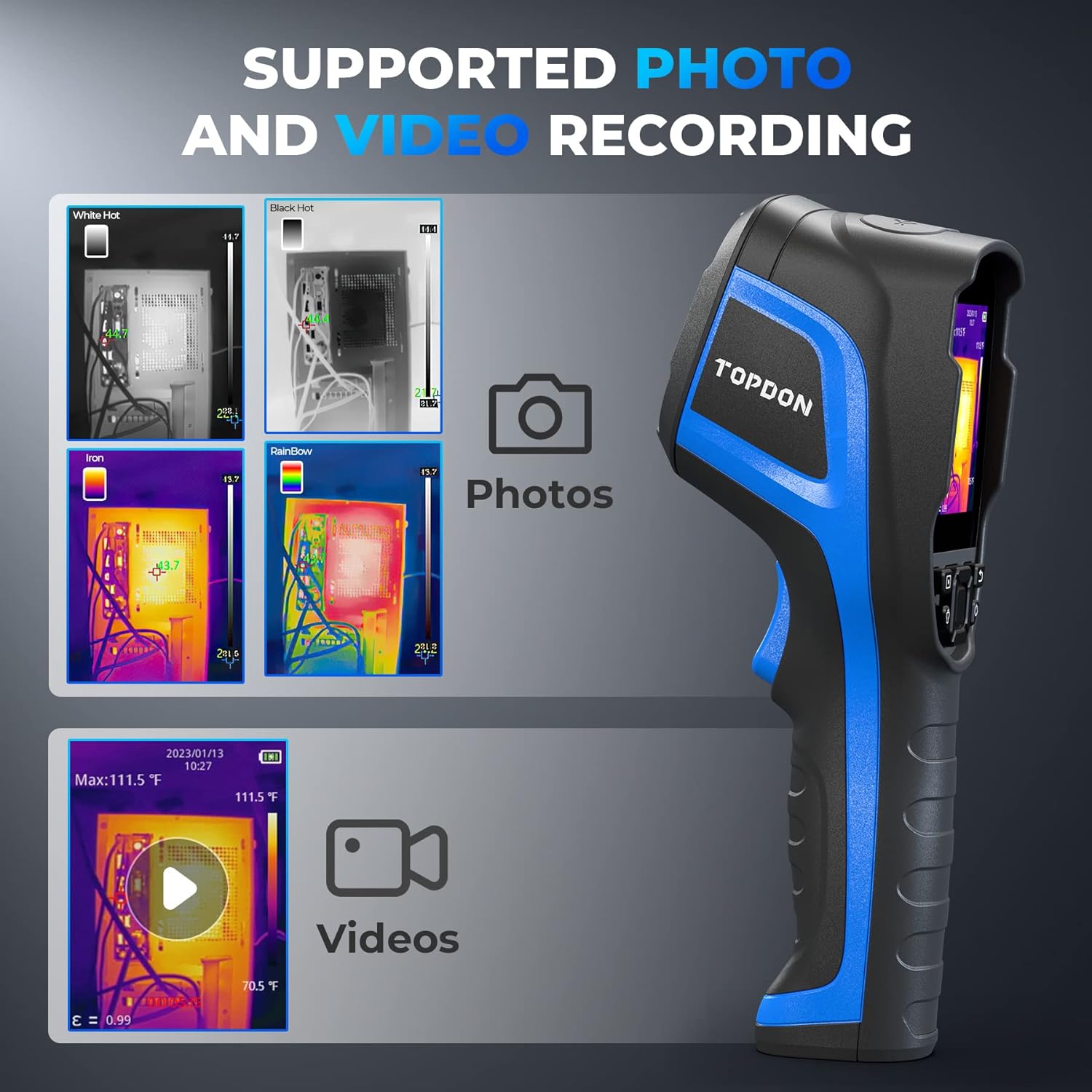

          Support Video Recording Super Battery Life: powerful one-touch photo viewing and video recording function so you can share the photos taken to your computer. The built-in 5000Ah rechargeable Li-ion Battery can support up to 12 hours of continuous operation with a long life span that allows you to handle high-intensity measurement work with ease. Greatly meet the power monitoring boiler inspection house maintenance circuit testing HVAC testing and other types of use scenarios!

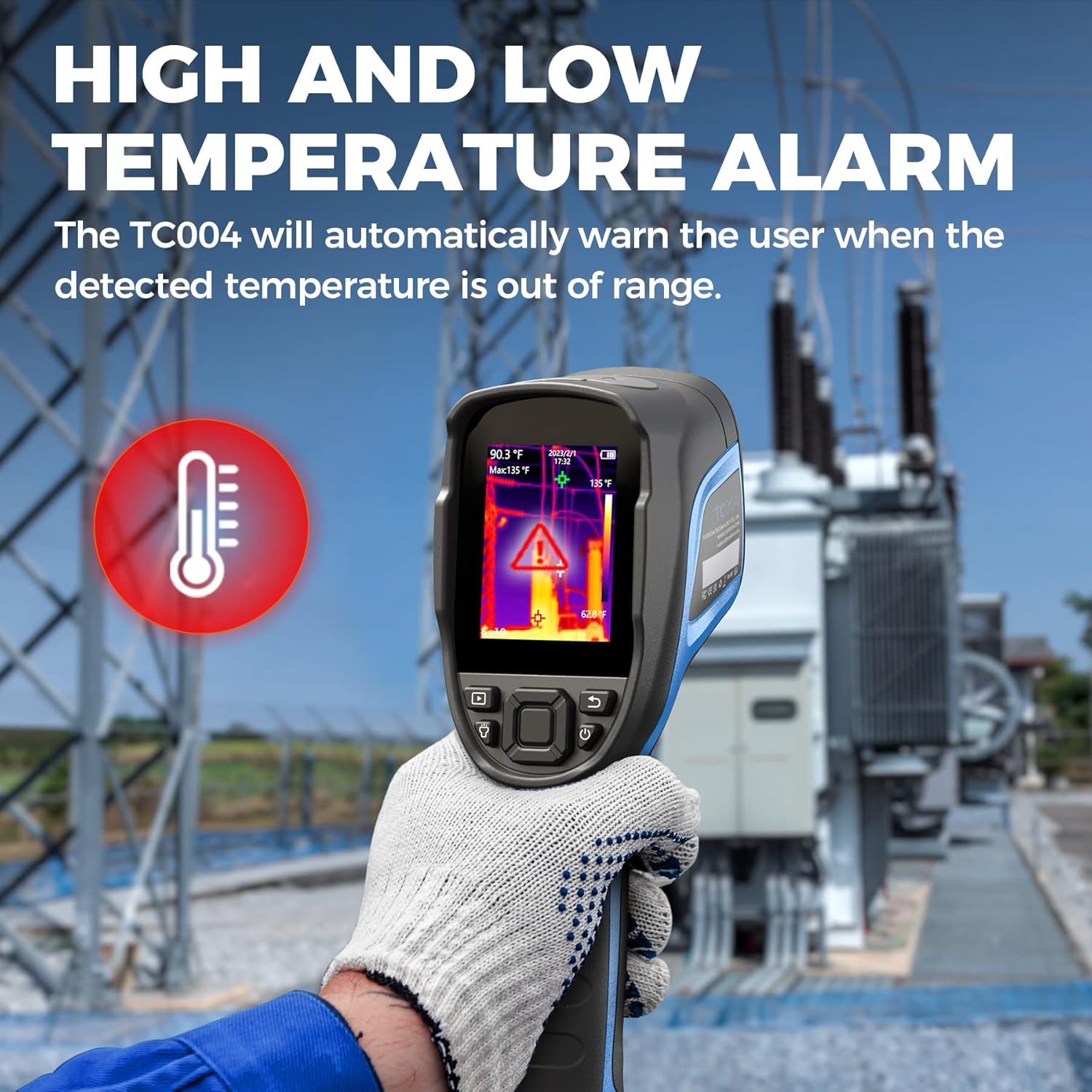

          Multiple Functions More professional: TC004 Thermal Imager with high and low temperature alarm function when the temperature is out of range the audio alarm and warning light will remind you. Including 4 kinds of color palette choose the ideal color scale for your work - white hot black hot iron red rainbow. LED work light allows you to reach the dark and hard to reach areas automatic shutdown function to ensure that you will not run out of power in the important work.

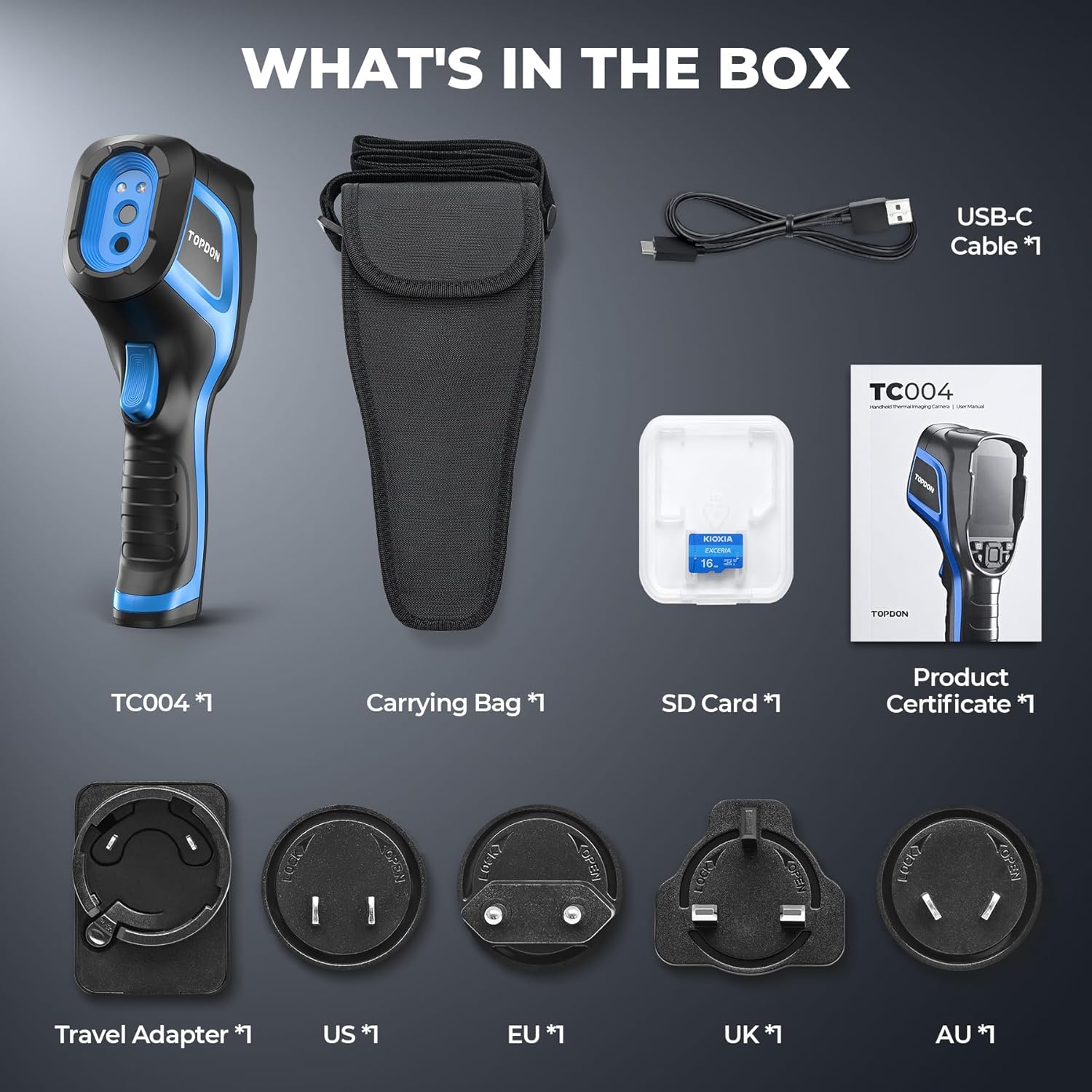

          Sturdy and durable: TC004's ergonomic grip handle makes it easy to grasp and it is designed with a tripod screw hole 1/4 adapter - convenient and fast installation and fixing fixed point measurement 2 meters drop resistance design. Provide 1-year warranty and lifetime technical support. The package includes: thermal imager*1 32G memory card*1 data cable*1 protection bag*1 manual*1 5V charger*1.

          TC004 is a handheld thermal camera that provides a simple professional and efficient solution for electrical diagnosis home maintenance mechanical equipment maintenance construction inspection agriculture forestry and animal husbandry.

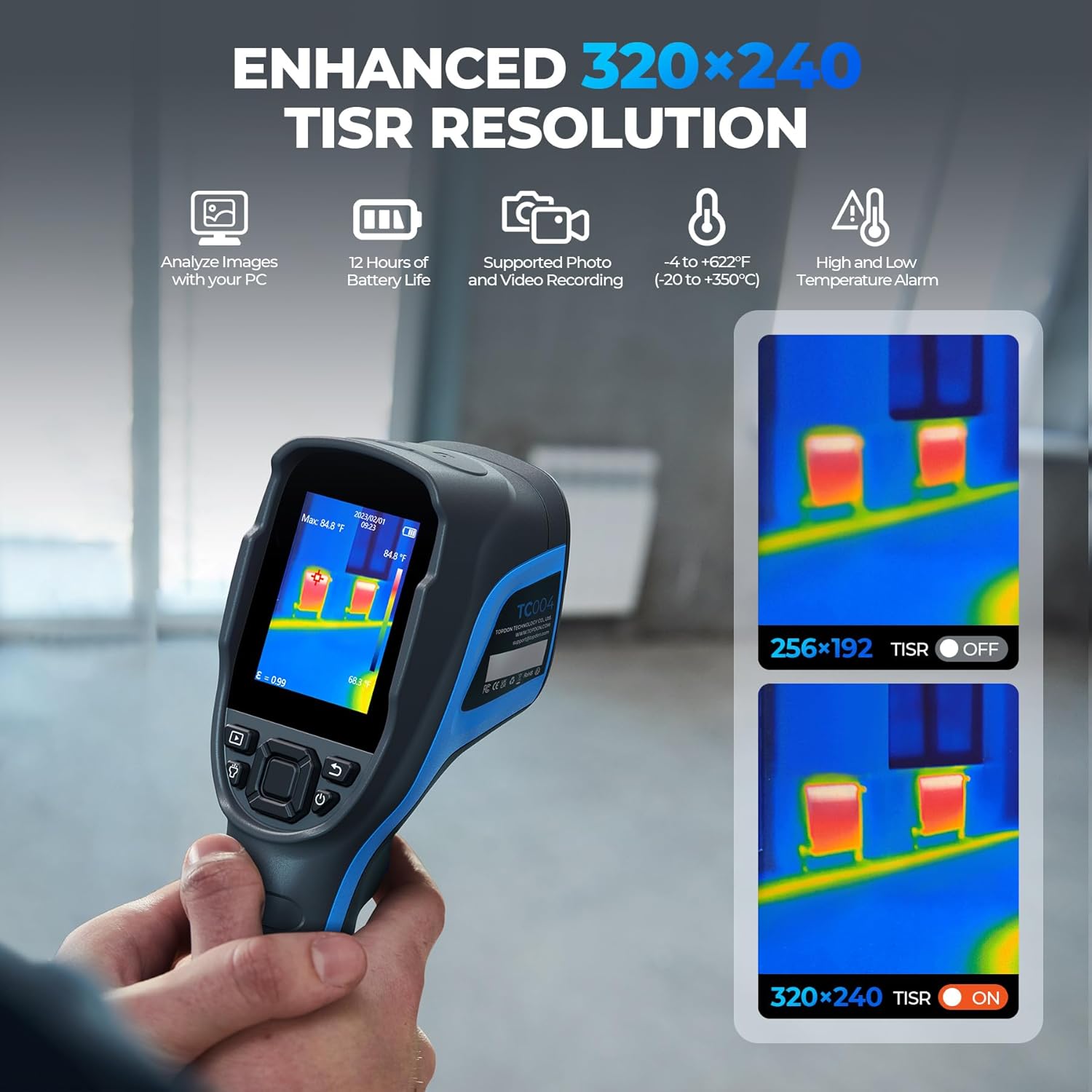

          1. High Image Quality The high-resolution 256x192 pixel infrared camera allows you to say goodbye to blurry images

          2. Supports both standalone mode and PC mode: The tool is ready for analysis with the standalone and the PC modes enabling users to project and upload images from the TC to their PC.

          3. Perform temperature detection with extreme accuracy with 1F temperature resolution and View detailed temperature changes with high heat sensitivity of 40mk.

          4. The built-in 5000mAh rechargeable Li-ion Battery can support 12-hour runtime Can use anytime with no need to worry about low battery.

          5. Automatic Cold & Hot Spot Tracking to observe changes more effectively within a fully colorized area.

          6. Measures a wide range of temperatures from -20C to 350C (-4F to +662F). broad enough to capture all of the temperatures in the objects or scenes you typically encounter.

          7.4 Color Scale Palettes to learn more about the area being inspected and Built-in fill LED light Makes operations safer. No need for additional light sources

          8.52.5x 39.5Degrees Field of View to show more subjects in a single thermal image.

          9.Adjustable Emissivity: TC004 has a function such as adjust the emissivity. Adjust the emissivity allows you to take more accurate measurements.

          10.With IP54 water protection and a 2 meter (6.6 ft.) drop-proof design the TC004 provides a simple professional and efcient solution for electrical diagnosis home maintenance mechanical equipment maintenance construction inspection agriculture forestry and care of livestock.

          TODDON TC004 thermal imager is useful to eliminate blind guesswork by discovering diagnosing tracking thermal images of objects humans buildings and animals etc. even in the dark as quickly as possible with complete accuracy.

          The following is a list of potential uses: Detecting Elevated Body Temperature HVAC Electrical Inspections / Maintenance Automotive Inspections Home Maintenance Energy Auditing Heat Leaks and more!

          Including English Chinese traditional Korean Japanese French Spanish Italian Portuguese German Polish Russian Hungarian Turkish

          The TC004 has three different measurements to detect center hot and cold spots. The automatic detection feature allows users view temperature differences more visually.

          TC004 Empowering You to Make the Invisible Visible

          A Variety of Real-Life Applications

          13 Languages Support

          Three Measurement Modes & Auto-Detection
