  • DX5 II Hi-Res DAC & Headphone Amp Combo Dual ES9039Q2M X-Hybrid Amp 10-Band PEQ LDAC Bluetooth 5.1 4.4mm Balanced & 6.35mm Headphone Output Preamp Mode 12V Trigger (Black)

DX5 II Hi-Res DAC & Headphone Amp Combo Dual ES9039Q2M X-Hybrid Amp 10-Band PEQ LDAC Bluetooth 5.1 4.4mm Balanced & 6.35mm Headphone Output Preamp Mode 12V Trigger (Black)

103.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description
          Dual ESS9039Q2M DAC Chips Equipped with dual DAC chip ES9039Q2M the DX5 II delivers high-resolution DAC performance with ultra-low distortion and noise supporting PCM768kHz/32bit DSD512 decoding a true audiophile DAC amplifier for your desktop system.
          Powerful Balanced Headphone Amp The DX5 II features an X-Hybrid headphone amplifier circuit with fully balanced quad-channel design offering an impressive 7600mW x2 output. Perfect for driving demanding high impedance headphones or sensitive IEMs with no audible noise floor. A must-have desktop DAC amp for HiFi enthusiasts.

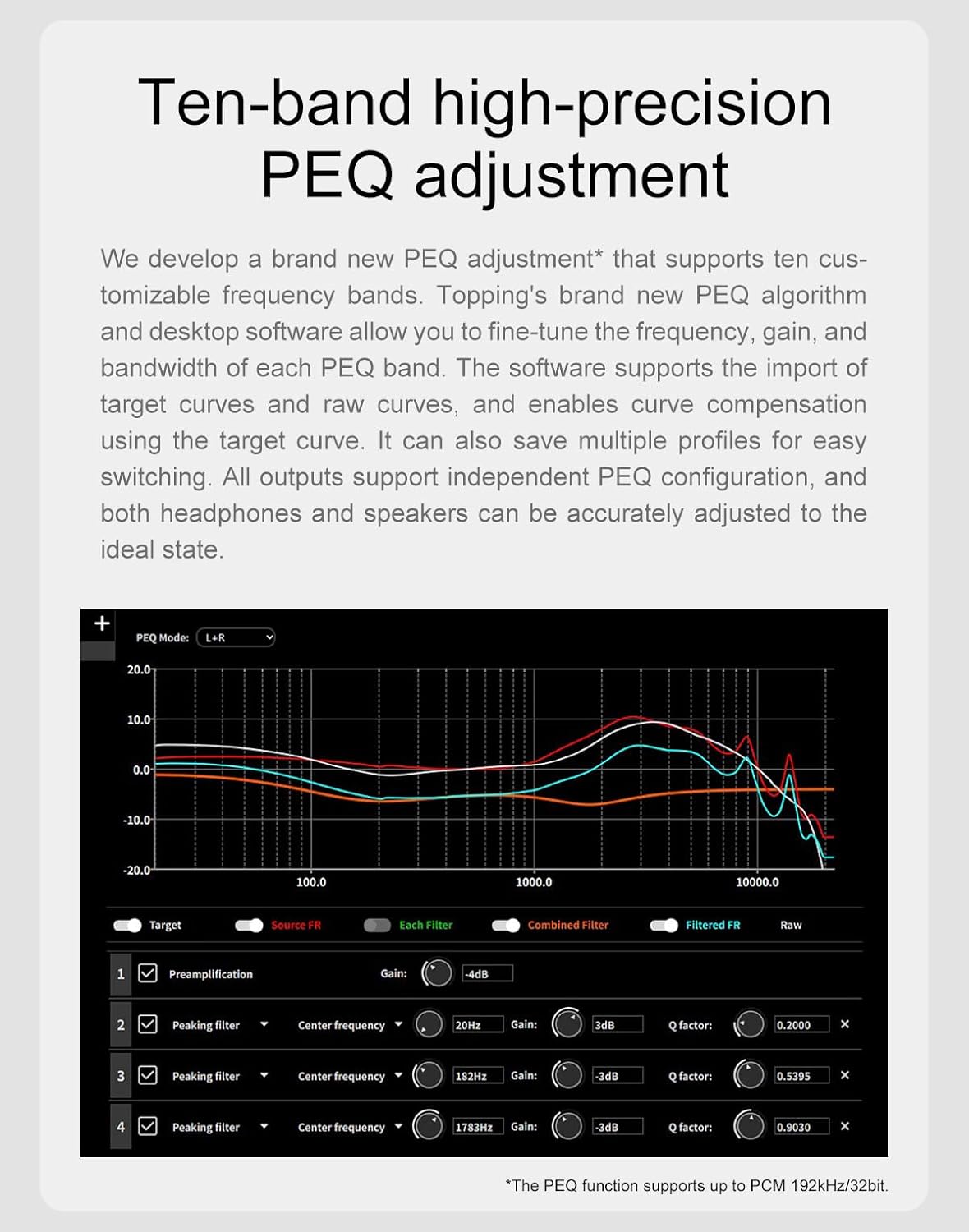

          10-Band High Precision PEQ Adjustment With its advanced 10-band PEQ adjustment and self-developed IV circuitry DX5 II allows precise tuning of your audio system. Whether paired with balanced headphone amp HiFi DAC amp or active speakers you can easily achieve the ideal sound signature.
          Bluetooth 5.1 & LDAC Wireless DAC Enjoy high-quality Bluetooth DAC amp experience with DX5 IIs support for LDAC aptX Adaptive aptX HD AAC and SBC codecs. The built-in QCC5125 ensures wireless audio quality beyond CD level perfect for modern streaming needs.
          Aurora UI with Full-Color Display The vibrant 2.0" Aurora UI screen with 9 customizable themes and a user-friendly pressable knob offers intuitive control. Quick switching of preamp headphone amp or Bluetooth DAC modes makes this an ultra-versatile addition to your USB DAC setup.

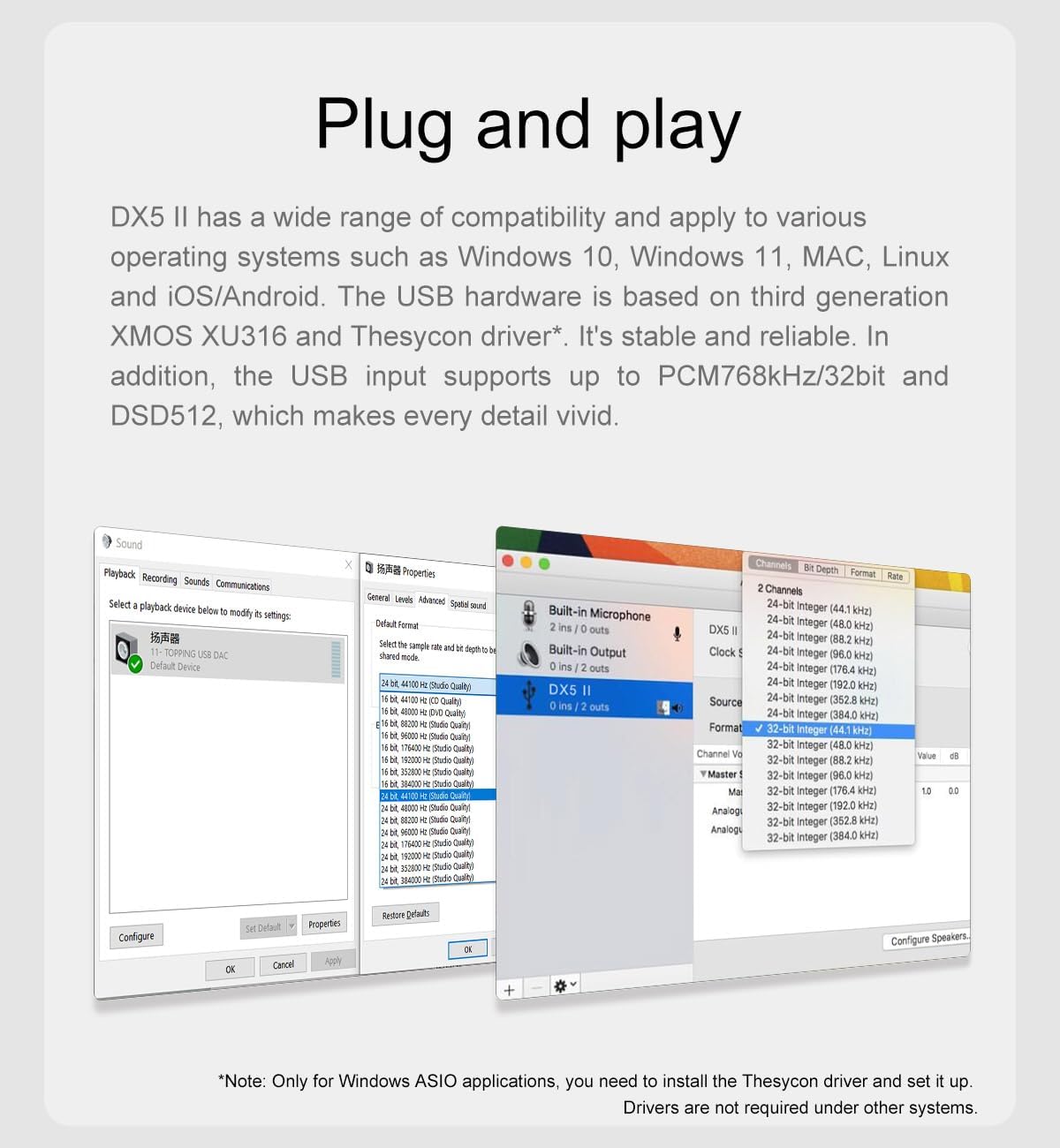

          Extensive Connectivity & Plug-and-Play Featuring USB/Bluetooth/Coaxial SPDIF/Optical SPDIF/ input with XMOS XU316 DX5 II supports DAC operation across Windows Mac Linux iOS and Android platforms. Truly a 32-bit DAC for discerning ears.
          12V Trigger & Active Speaker Friendly DX5 II supports 12V Trigger in/out for seamless integration with HiFi systems. Use its preamp mode to directly control volume when connected to active speakers or pure amplifiers. Ideal for building a clean powerful balanced DAC & headphone amp desktop stack.

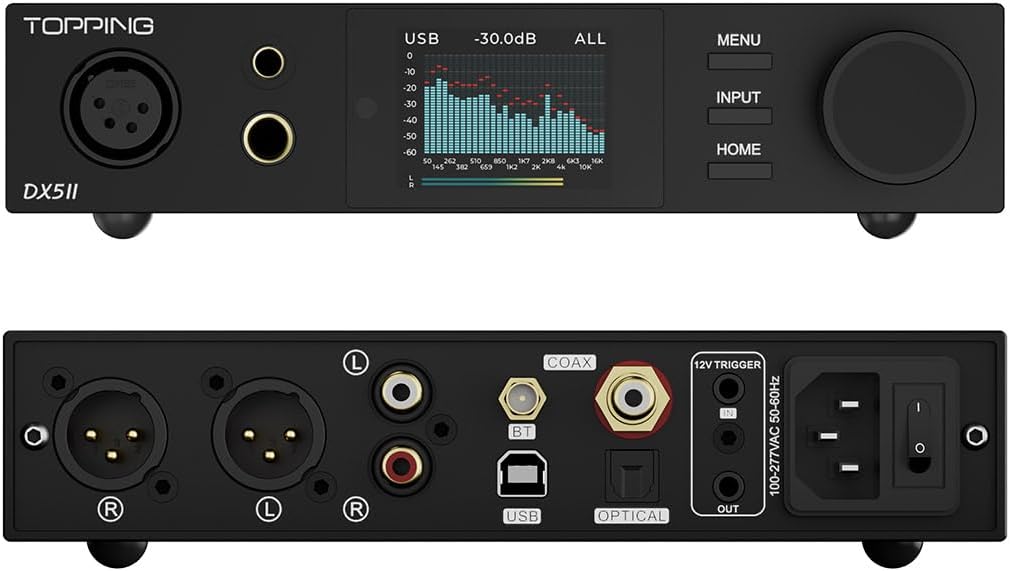

          • Equipped with 6.35mm single-ended 4.4mm balanced and 4-Pin XLR outputs; ultra-low 1.8uVrms noise floor ensures hiss-free listening perfect for sensitive IEMs to power-hungry headphones.
          • 7600mW x 2 output

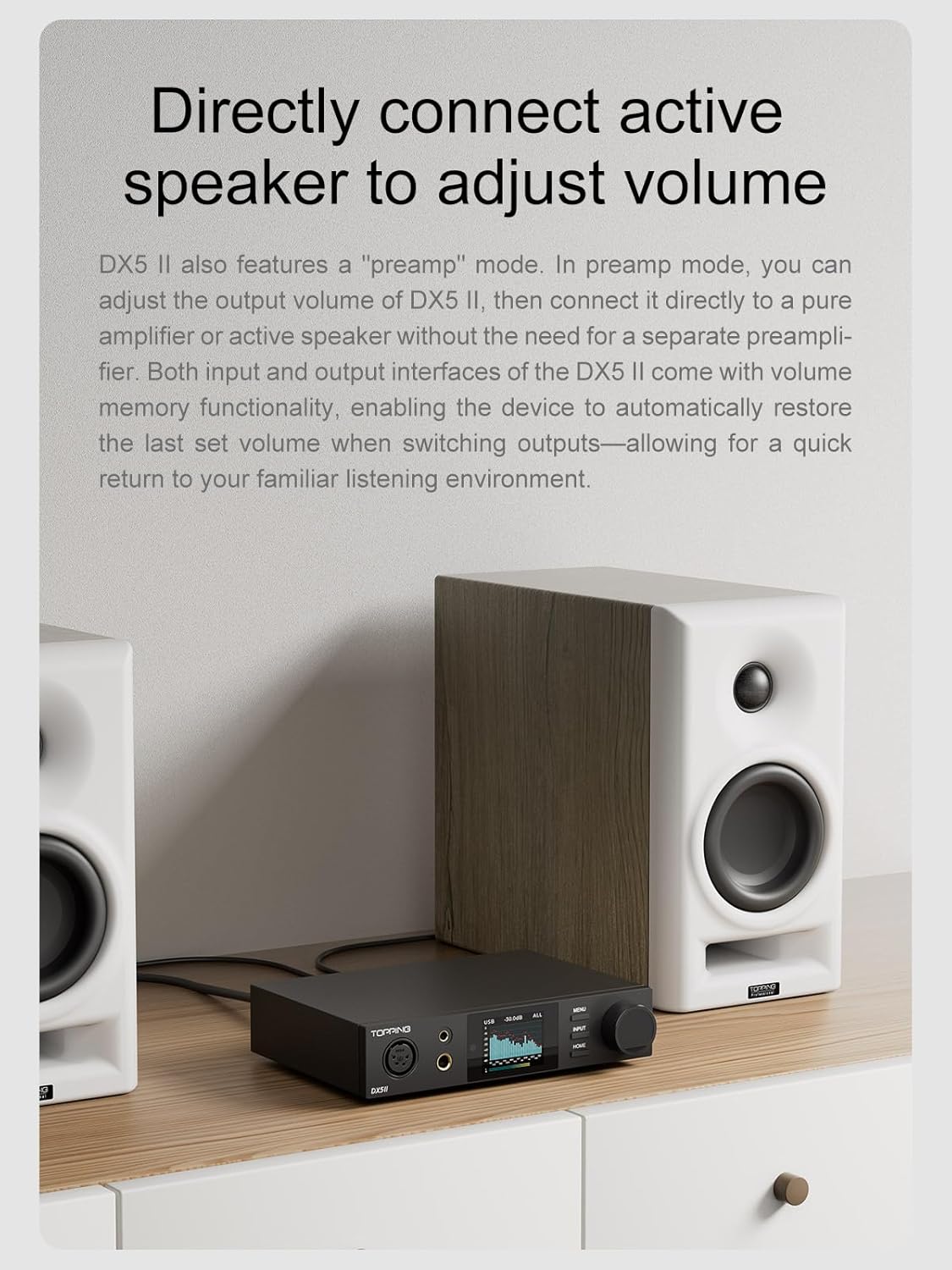

          • The DX5 II features a "preamp" mode. In preamp mode you can adiust the output volume of DX5 II then connect it directly to a pure amplifier or active speaker without the need for a separate preamplifier.
          • Volume memory functionality

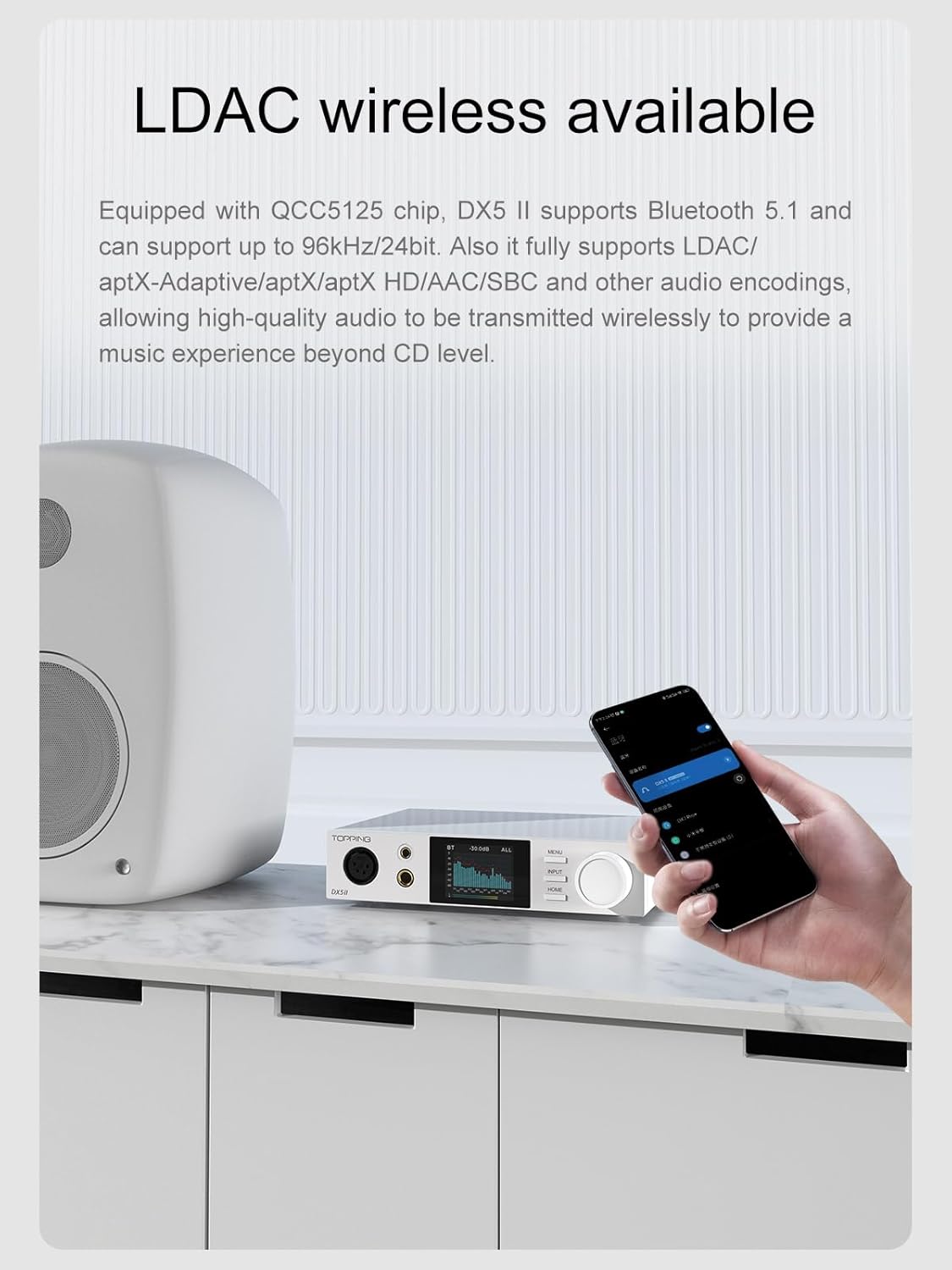

          • Equipped with QCC5125 chip The DX5 II supports Bluetooth 5.1 and can support up to 96kHz/24bit. Also it fully supports LDAC/aptX-Adaptive/aptX/aptX HD/AAC/SBC and other audio encodings.allowing high-quality audio to be transmitted wirelessly to provide a music experience beyond CD level

          • X-Hybrid builds on NFCA architecture with a new triple-stage hybrid design delivering ultra-low distortion high dynamic range and improved efficiency. Optimized circuitry lowers power use and heat. The compact chassis features a fully balanced quad-channel amp.
          • SNR: 133dB @1kHz / DNR: 133dB @1kHz

          • 2.0 inches full color screen and 3 buttonsMake quick and efficient adjustments to your settings An experience changed from this moment.

          • 's brand new PEQ algorithm and desktop software allow you to fine-tune the frequency gain and bandwidth of each PEQ band.

          • The DX5 II has a wide range of compatibility and apply to various operating systems. and the USB input supports up to PCM768kHz/32bit and DSD512

          • The module is dedicated to achieving superior audio reproduction. The design delivers lower distortion and noise while occupying less space.

          DX5 II Hi-Res DAC & Headphone Amp Combo

          Dual ES9039Q2M X-Hybrid Amp 10-Band PEQ LDAC Bluetooth 5.1

          Wide range of adaptation to headphones

          Directly connect active speaker to adjust volume

          X-Hybrid Amplifier Circuit & LDAC wireless

          LDAC wireless available

          X-Hybrid Headphone Amplifier Circuit

          2.0 inches Aurora UI

          Ten-band PEQ adjustment

          Plug and play

          Self-developed IV circuitry

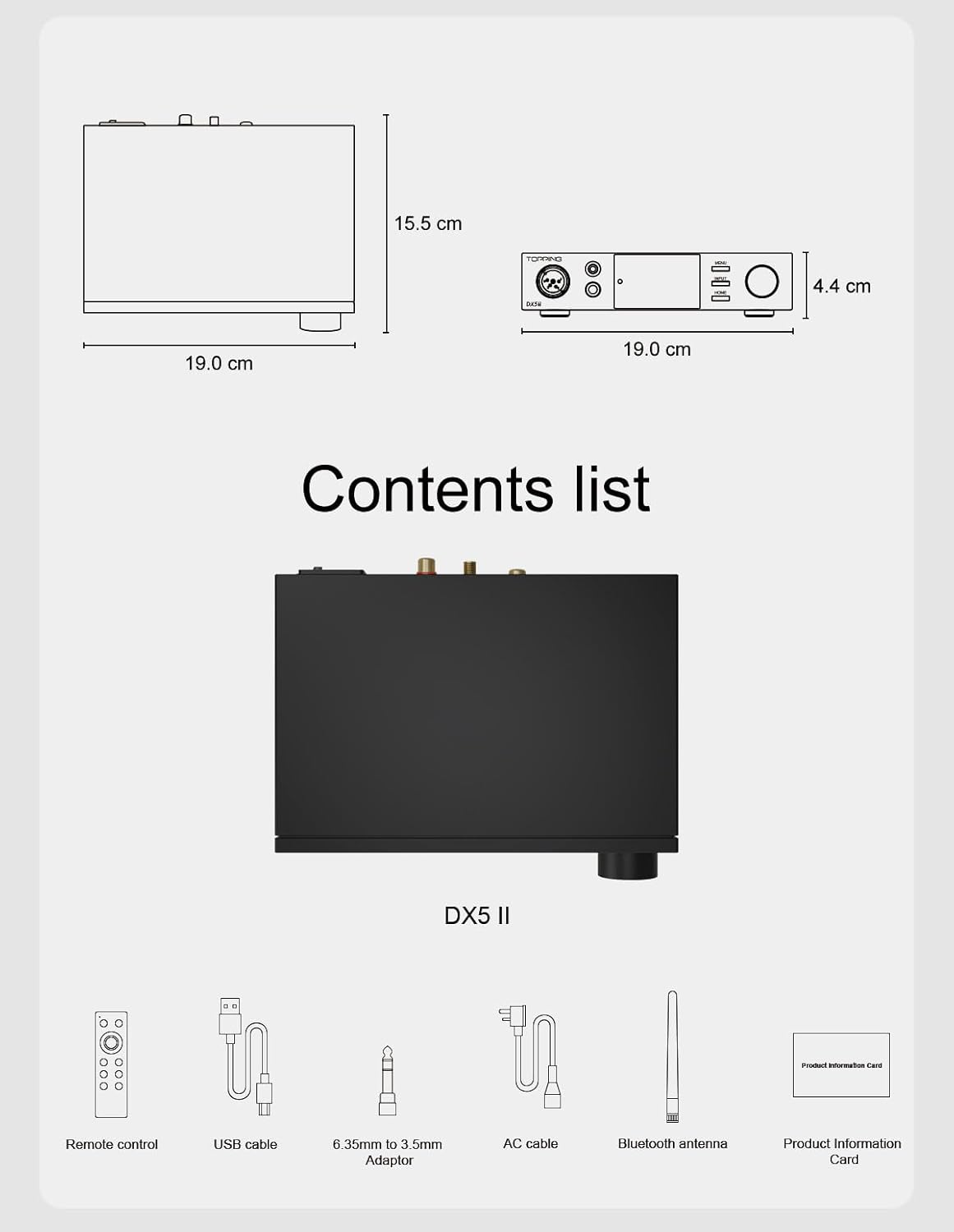

          What is in the package
