  • 110V 1/3 HP 4CFM Single Stage Rotary Vane Air Vacuum Pump and R134a AC Manifold Gauge Set Kit with Leak Detector Carry Bag for HVAC Air Conditioning Refrigeration Recharging ETL Listed

110V 1/3 HP 4CFM Single Stage Rotary Vane Air Vacuum Pump and R134a AC Manifold Gauge Set Kit with Leak Detector Carry Bag for HVAC Air Conditioning Refrigeration Recharging ETL Listed

103.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

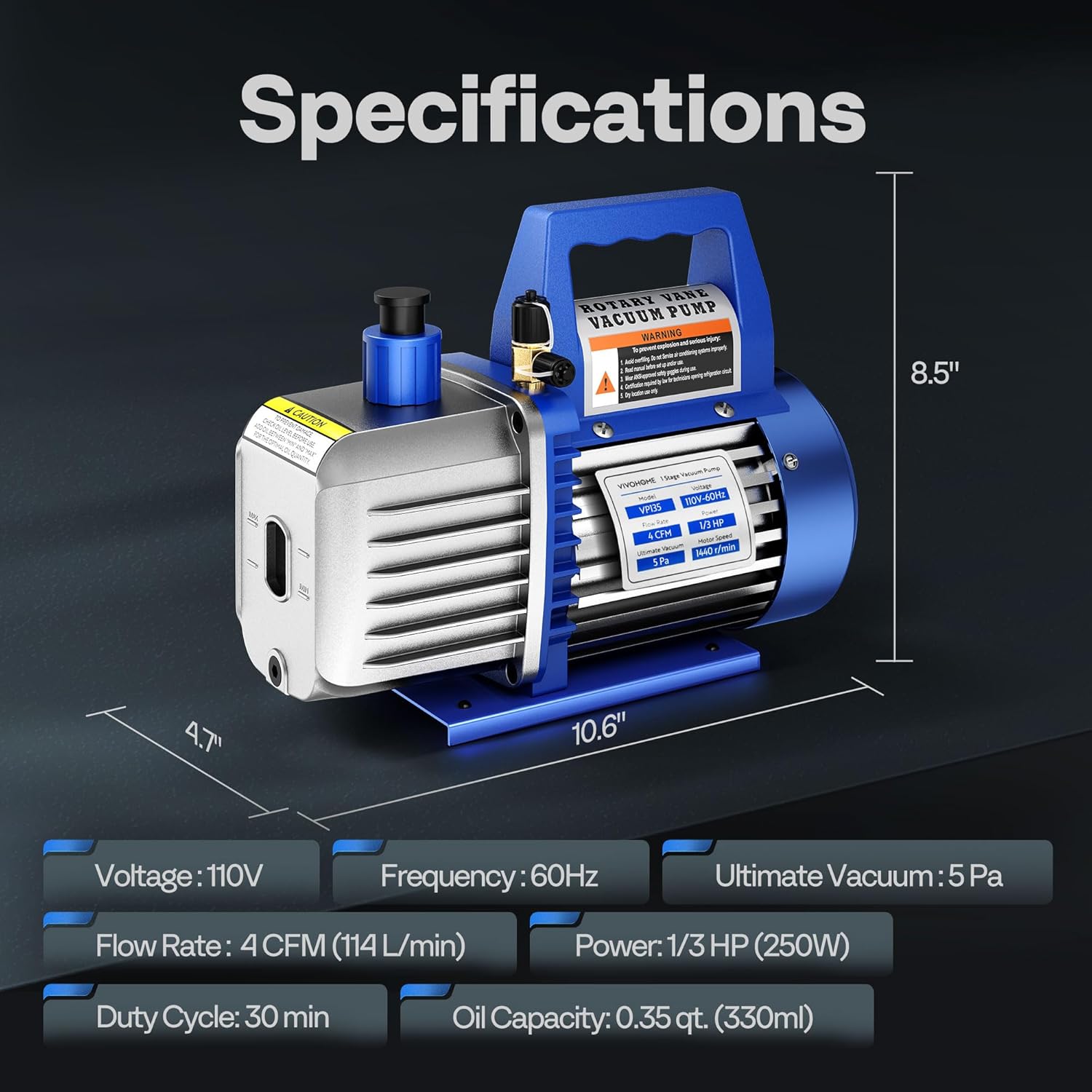

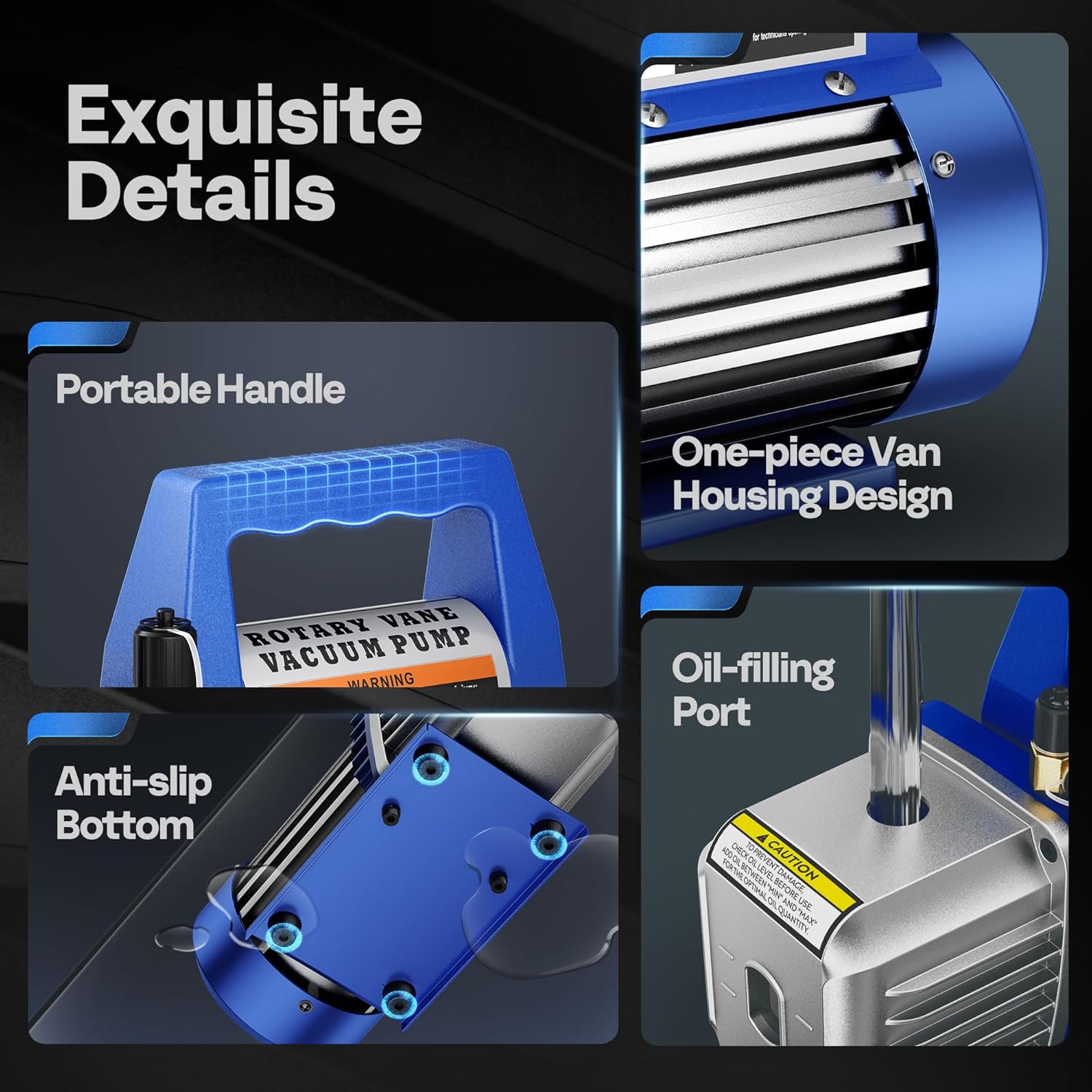

          HIGH-PERFORMANCE 4 CFM VACUUM PUMP: Single-stage rotary vane pump delivers fast deep evacuation for automotive and home HVAC systems; Removes moisture before refrigerant chargin;. Die-cast aluminum body with anti-slip base ensures long-lasting use
          ENHANCED COOLING & EASY OIL MANAGEMENT: Built-in high-volume cooling fan supports extended continuous operation; Clear oil sight glass allows quick checks; Bottom drain port enables clean mess-free oil changes; Includes 0.35 qt/330 ml pump oil

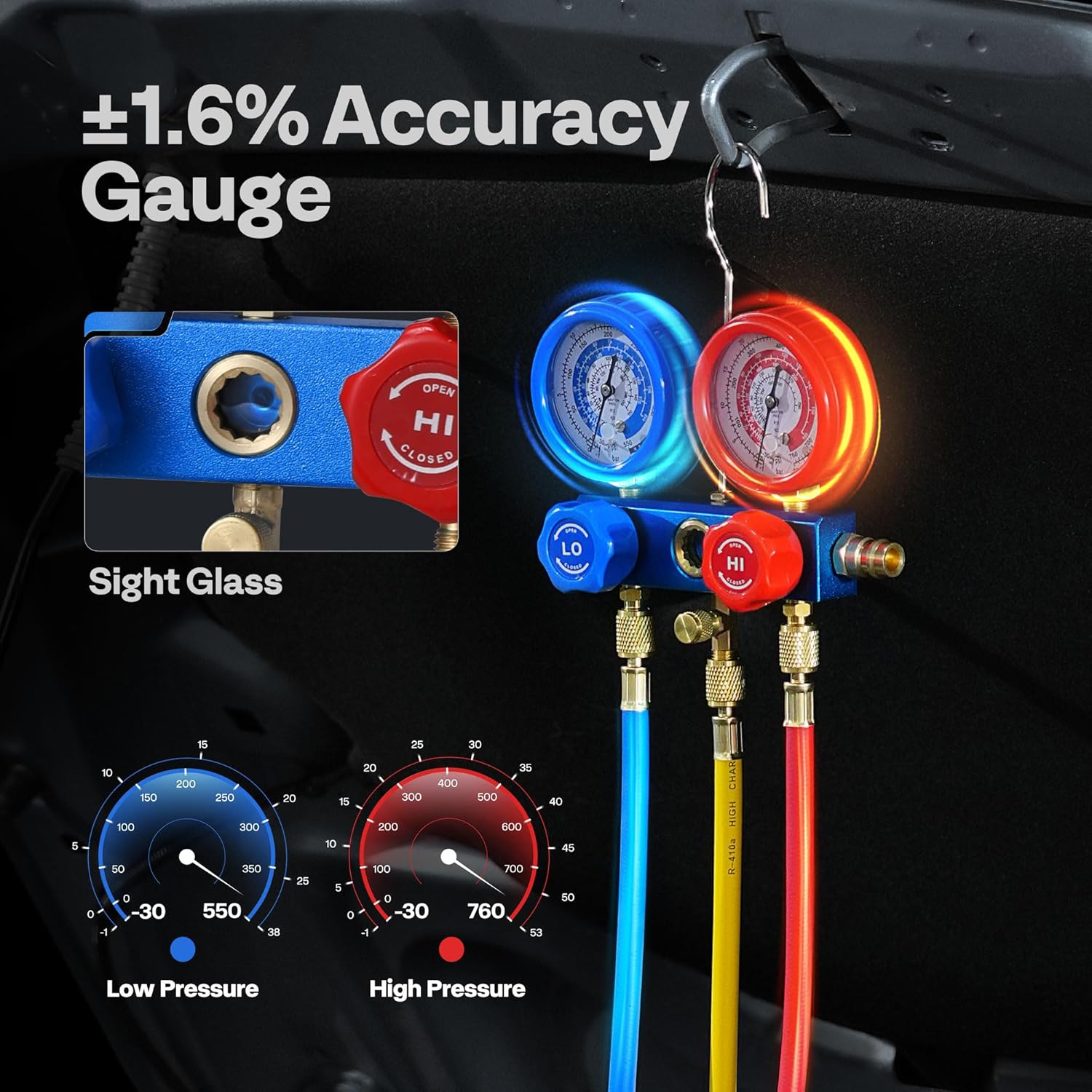

          ACCURATE MANIFOLD GAUGE SET: High-quality manifold gauges provide precise readings; Large viewing glass ensures clear refrigerant flow; Shock-resistant core maintains accuracy during transport or daily use

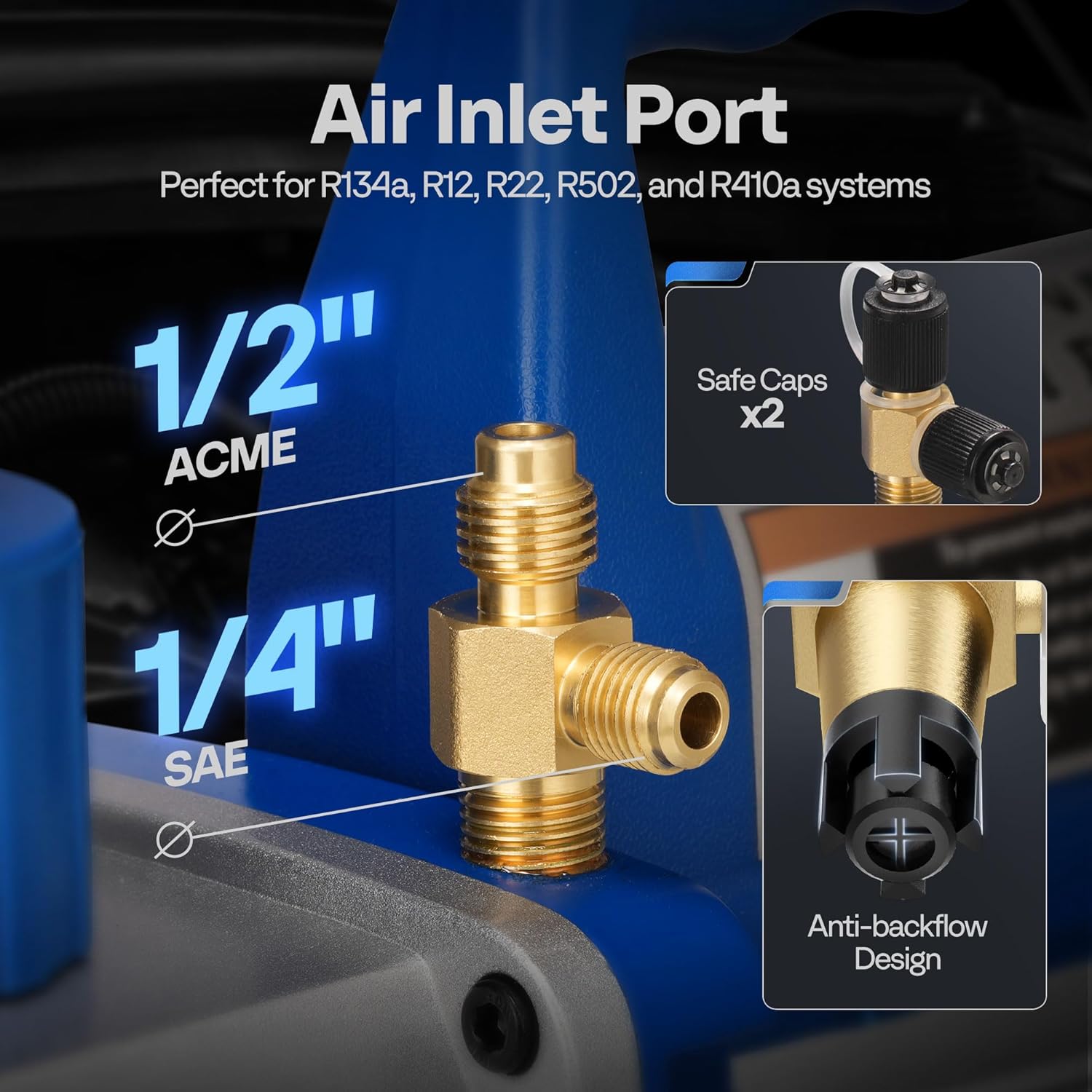

          DURABLE COLOR-CODED HOSES: Three 5 ft reinforced hoses provide flexible leak-proof connections; Red for high blue for low yellow for service; Compatible with R134a R12 R22 R502 and R410a systems using included 1/4"-to-5/16" adapter for R410a connections
          COMPLETE HVAC ACCESSORY KIT: Includes 4 CFM vacuum pump manifold gauge set three color-coded hoses leak detector R410a adapters R134a can taps quick couplers and carry bag; All essential tools in one kit for convenient HVAC servicing

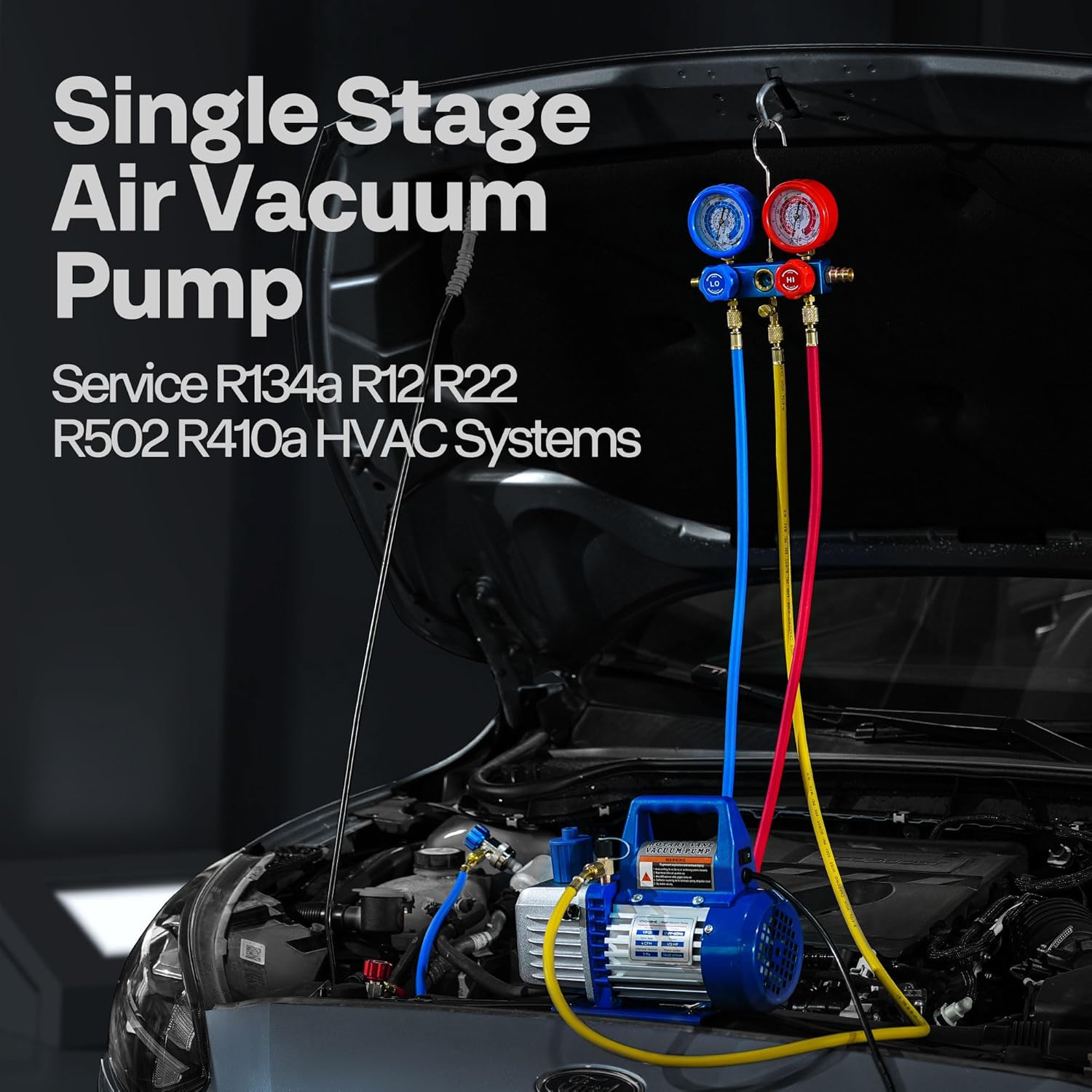

          IDEAL FOR DIY & PRO USE: Lightweight portable pump with ergonomic handle perfect for fast vacuum and refrigerant service on automotive A/C residential HVAC and heat pump systems as well as 13 HP split window and portable AC units
          1Vacuum Evacuation Curve2Safe &Temp Control3Efficient Cooling System4Easy Oil Management5Pump Components Overview1Manifold Gauge Components2Heavy-Duty 5FT Hoses3Hose & Coupler Components4Precision Leak Detector5Complete Accessory Kit1Auto A/C Compatible2Home & Portable A/C Ready

        • Pump wont start or motor runs unevenly. What can I do?

          1. Use stable power and check plug wiring capacitor and switch.

          2. Keep air intake open and connectors tight.

          3. Operate between 540C; if rotor is rusted rotate counterclockwise. High temps may need multiple startups.

        • Pump is slow or doesnt reach the expected vacuum. How can I fix it?

          1. Replace dirty oil and keep it near the middle of the sight glass.

          2. Check all hoses and interfaces for leaks and ensure sealing rings are intact.

          3. Clean the exhaust valve if needed.

        • Oil is leaking or spraying from the pump or sight glass. How to stop it?

          1. Adjust oil level to avoid overfilling and keep the pump level while operating.

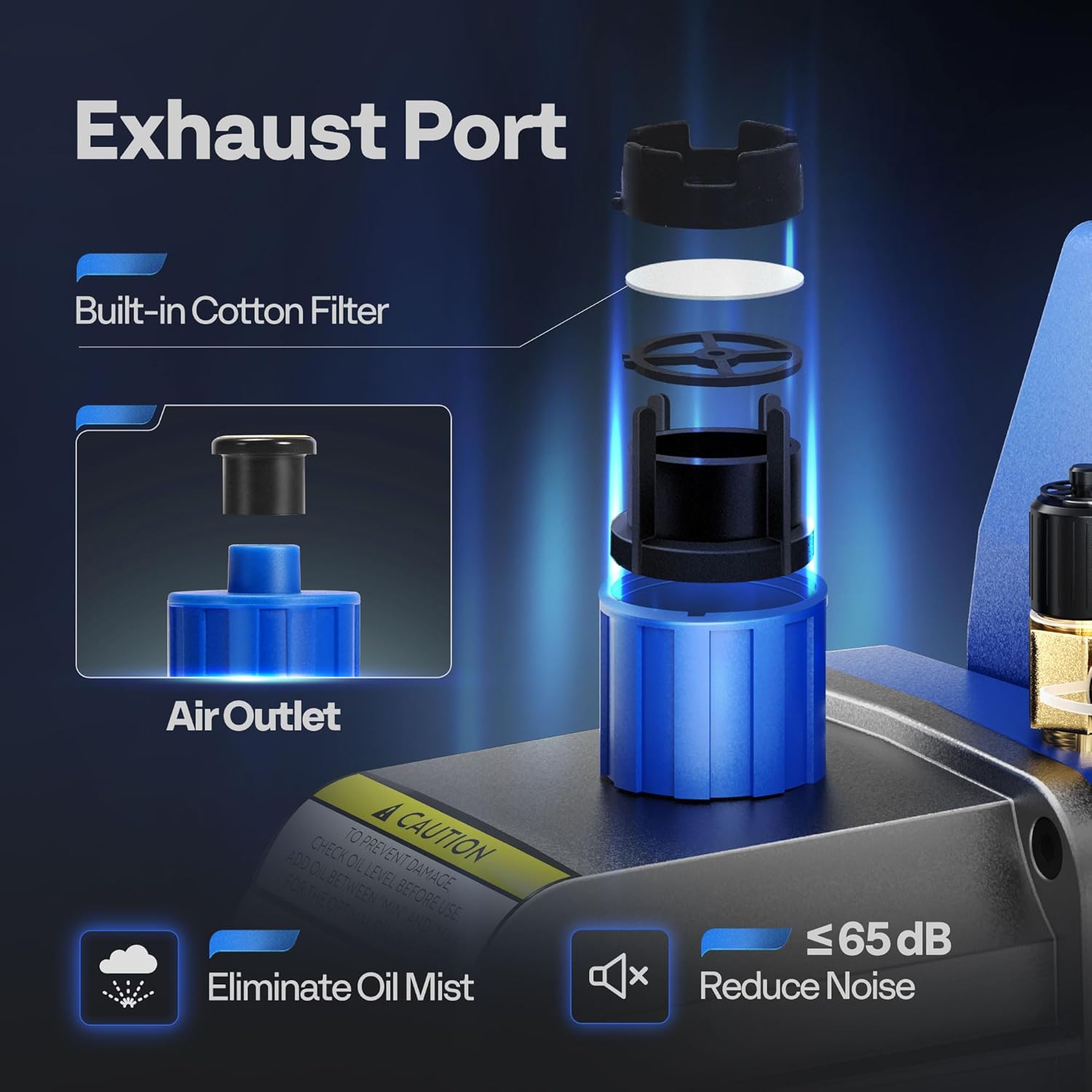

          2. Reattach and clean the oil mist filter.

          3. Ensure sealing rings and bottom valve are properly installed and tightened.

        • Gauge shows wrong pressure hoses leak or air escapes at connectors. What should I do?

          1. Inspect hoses for damage or leaks.

          2. Tighten connectors or replace sealing rings.

          3. Adjust or replace the gauge head if readings are inaccurate and check interface fittings.

        • Leak detector is insensitive false alarms occur or it malfunctions. How to troubleshoot?

          1. Ensure all four batteries are properly installed; replace old batteries if needed.

          2. Test in a ventilated area using low and high sensitivity.

          3. Confirm leaks with multiple methods: listen smell or use soapy water.

          • Vacuum Pump and R134a AC Manifold Gauge

          Pump wont start or motor runs unevenly. What can I do?

          Pump is slow or doesnt reach the expected vacuum. How can I fix it?

          Oil is leaking or spraying from the pump or sight glass. How to stop it?

          Gauge shows wrong pressure hoses leak or air escapes at connectors. What should I do?

          Leak detector is insensitive false alarms occur or it malfunctions. How to troubleshoot?
